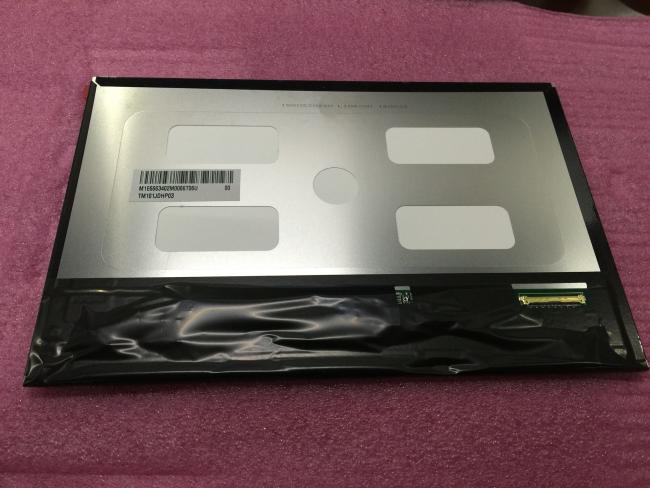

TM101JDHP03 TIANMA 10.1" 1280(RGB)×800 400 cd/m² INDUSTRIAL LCD DISPLAY

Price Negotiable
Price: Negotiable
MOQ: 1PCS
Delivery Time: 1-2 DAYS
Brand: TIANMA
Product Description

TIANMA TM101JDHP03 Application Details

Basic Information :
Brand

Model
TM101JDHP03
Type
a-Si TFT-LCD , LCM
Used For

Screen Size
10.1 inch
Alias
-
Environment :
Storage Temp.
-20 ~ 60 °C
Operating Temp.
-10 ~ 50 °C
RoHS

Vibration
-
Typical Features :

  • With LED Driver
  • 6/8 bit



TIANMA TM101JDHP03 Mechanical Details

Pixel Features :
Resolution
1280(RGB)×800, WXGA
Dot Pitch(mm)
0.0565×0.1695 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.1695×0.1695 (H×V) [149PPI]
Mechanical Size :
Active Area(mm)
216.96(H) × 135.6(V)
Bezel Area(mm)
217.96(H) × 136.6(V)
Outline Dim.(mm)
229.46(H) × 149.1(V)
Depth(mm)
2.57/4.7 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
16:10 (H:V)
Orientation
Landscape type
Mounting :
Without
Other Spec :
Weight
180g (Typ.)
Treatment
Hard coating



TIANMA TM101JDHP03 Optical Details

Basic Information :
Luminance(cd/m²)
400 (Typ.)
Contrast Ratio
800:1 (Typ.) (Transmissive)
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Display Mode
SFT, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
25 (Typ.)(Tr+Td)
Color Performance :
White Coordinate
Wx:0.300; Wy:0.324
Display Colors
262K/16.7M (6-bit / 8-bit)
Color Temperature
7289K
White Uniformity
1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
52%
sRGB
73% coverage
Adobe RGB
55% coverage
DCI-P3
54% coverage
Rec.2020
39% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



TIANMA TM101JDHP03 Electronics Details

Frame Rate :
60Hz
Reverse Scan :
No
Driver IC :
COG Built-in ST5821CA*3 + ST5804CA*1



TIANMA TM101JDHP03 Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
1.1/1.37A (Typ./Max.)
Signal Type :
LVDS (1 ch, 6/8-bit)
Logic Voltage
-
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
I-PEX
20455-040E-66
0.5 mm
40 pins
1 pcs



ANMA TM101JDHP03 Backlight Details

Backlight Features :
Type
WLED
Quantity
3S11P
Position
Edge light type
Replacement
-
Shape
Array
Life Time
30K(Typ.) (Hours)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
5.0±0.5V
Current Supply
0.6A (Max.)
Consumption
3.0W (Max.)



TIANMA TM101JDHP03 Packing Details

Package Box : Quantity Weight Box Size
42 pcs / box TBD 544×365×250 mm (L×W×H)



 FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
