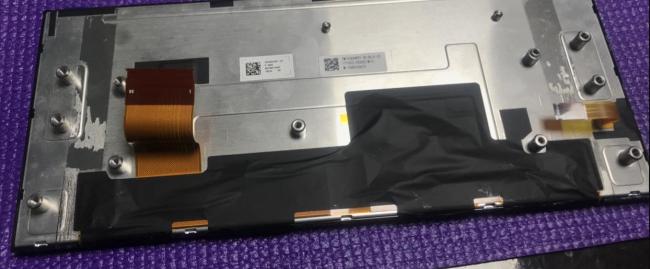

TM103XDGP01 TIANMA 15.3" 1920(RGB)×720 800 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
TIANMA
Product Description
TIANMA TM103XDGP01 Optical Details
| Basic Information : | Luminance | 800 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 20 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Operating Mode | SFT, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | - | Support Color | 16.7M (8-bit) |
| Color Temperature | - | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
TIANMA TM103XDGP01 Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)×720 | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0423×0.1269 mm | Pixel Pitch(W×H) | 0.1269×0.1269 mm [200PPI] | |
| Physical Size : | Active Viewing | 243.65(W)×91.37(H) mm | Overall Dim. | 262.04(W)×110.3(H) mm |
| Bezel Opening | 245.65(W)×93.66(H) mm | Overall Depth | 8.4/11.9 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 8:3 | Shape Style | ||
| Fixation : | Without | |||
| Other Detail : | Mass | TBD | Surface | Hard coating |
TIANMA TM103XDGP01 Interface Details
| Signal Electrical : | Input Current | - | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | LVDS (2 ch, 8-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 101049-205050 | 1 pcs | 50 pins | ||||
TIANMA TM103XDGP01 Lightting Details
| Lamp Features: | Lamp Shape | 3 strings | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 8S3P | Life | 20K(Typ.) (Hours) | |
| Lamp Electrical : | Input Current | 90mA (Typ.) | Input Voltage | 21.6/24.24/26.6V (Min./Typ./Max.) | ||
| Consumption | TBD | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 101049-201050 | 1 pcs | 10 pins | ||||
| Backlight Driver : | No | |||||
