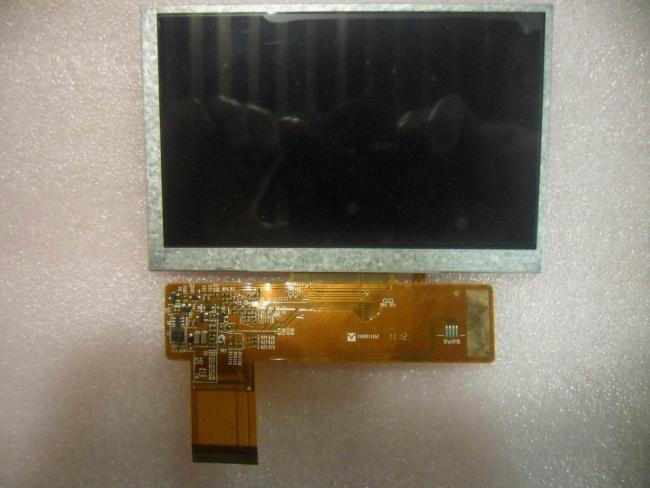

5.0" 800×480 RGB 250nits Tianma Tft Display TM050RDH05 TIANMA
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
TIANMA
Product Description
TIANMA TM050RDH05 Summary
Tianma Microelectronics Co., Ltd. (hereafter called TIANMA) TM050RDH05 is a 5.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are summarized by Panelook in the following: WLED Backlight, Matte . Based on its features, Panelook recommend that this model be applied to Portable Navigation, MID UMPC, MP3 PMP etc. According to the information stored in Panelook this model mass production on Q1, 2011, Now this model is discontinued. There are 1 items stock and 0 suppliers of this model on Panelook. We inputted this model's specification on Aug 28 2012 for the first time, and the latest update on Sep 7 2023. If you want to embed TM050RDH05 LCM in your future product, Panelook strongly recommend that you should contact with TIANMA or it's distributor to learn lateast production and specification detail. The TM050RDH05 production status marked on Panelook.com is for reference only and should not be used as the basis for the user's decision making. All specification details are inputted by Panelook engineers according to datasheet, but we cannot guarantee the spec listed is right.
TIANMA TM050RDH05 Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 250 cd/m² (Typ.) | TN, Normally White, Transmissive | 600:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 70/70/50/70 (Typ.)(CR≥10) | 20 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6638K | 16.7M (8-bit) | X:0.310; Y:0.330 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 49% | 69% | 52% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 51% | 37% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.25/1.33 (Typ./Max.)(9 points) | ||
TIANMA TM050RDH05 Mechanical Features
| Screen Size : | 5.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 800(RGB)×480, WVGA | RGB Vertical Stripe | 0.045×0.135 mm | 0.135×0.135 mm [188PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 108×64.8 mm | 111.1×67.9 mm | 118.5×77.55 mm | 3.4±0.3 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 15:9 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| TBD | - | Antiglare, Hard coating (3H) | ||
TIANMA TM050RDH05 Backlight Features
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 20K(Min.) | 7S2P | Array | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 21.7V (Typ.) | 40mA (Typ.) | 868mW (Typ.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Included in signal interface | - | ||||
