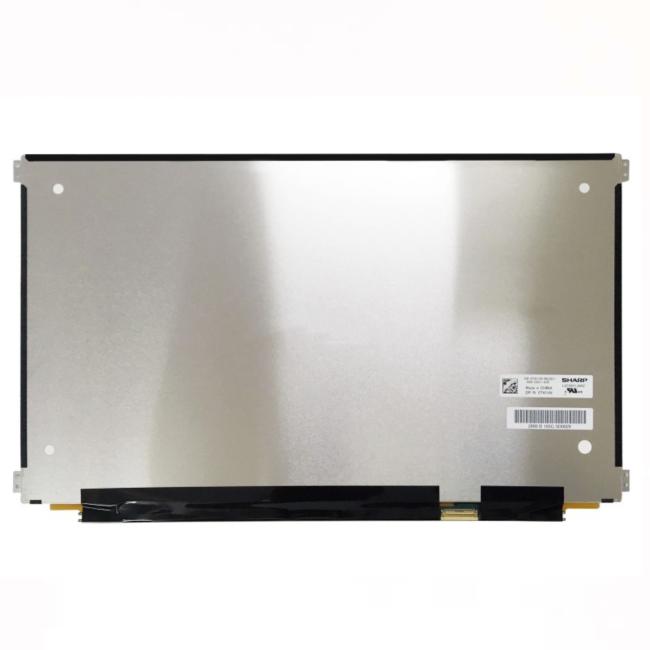

LQ156D1JX01B Sharp 15.6" LCM 3840×2160RGB 330cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
SHARP
Product Description
LQ156 Series LQ156D1JX03 LQ156D1JX01B LQ156D1JX01
Sharp LQ156D1JX01B Mechanical Details
| Pixel Features : | Pixel Format | 3840(RGB)×2160 [UHD] | Dot Pitch | 0.030×0.090 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.090×0.090 mm (H×V) [282PPI] | |
| Mechanical Size : | Display Area | 345.6×194.4 mm (H×V) | Bezel Area | - |
| Outline Dim. | 367.98×224.56 mm (H×V) | Outline Depth | 3.10±0.3 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | Slim (PCBA Flat, T≤3.2mm) | |
| Holes & Brackets : | Face mounting holes (8 pcs) on left, right, up slugs | |||
| Other Features : | Weight | 320/345g (Typ./Max.) | Surface | Glare (Haze 0%), Hard coating (3H) |
Sharp LQ156D1JX01B Optical Details
| Basic Information : | Brightness | 330 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Optical Mode | IPS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 25 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.40 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 71% | sRGB | 100% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Sharp LQ156D1JX01B Backlight Details
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 10K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | - | Position | Edge light type | |
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | With LED Driver |
| Driver Electrical : | Voltage Input | 7.0/12.0/21.0V (Min./Typ./Max.) | Current Input | 325/359mA (Typ./Max.) | ||
| Consumption | 3.9W (Typ.) | |||||
Sharp LQ156D1JX01B Interface Details
| Signal Systerm : | eDP (4 Lanes) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 0.5/1.06A (Typ./Max.) | ||
| Consumption | 1.64/3.5W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | |||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| I-PEX | 20525-040E-02 | 0.4 mm | 40 pins | 1 pcs | ||
