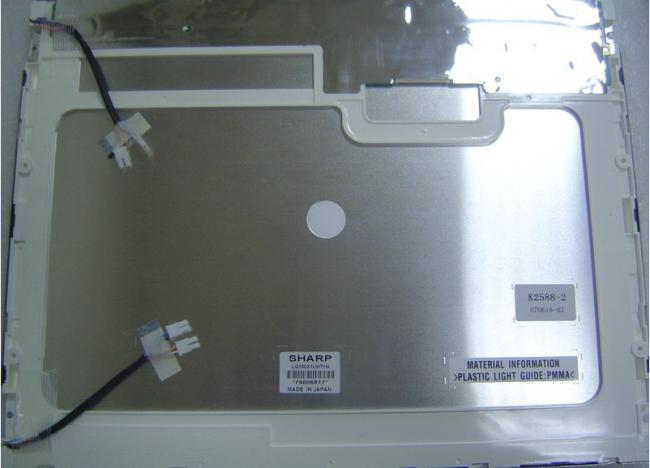

LQ150X1LW71U Sharp 15" LCM 1024×768 RGB 250 cd/m² INDUSTRIAL LCD DISPLAY
LQ150 Series LQ150X1LW73 LQ150X1LW72 LQ150X1LW71U LQ150X1LW71N
Sharp LQ150X1LW71U Application Features
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| SHARP | LQ150X1LW71U | a-Si TFT-LCD , LCM | - | |
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| - | 0 ~ 50 °C | -25 ~ 65 °C | - |
Sharp LQ150X1LW71U Mechanical Features
| Screen Size : | 15.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1024(RGB)×768, XGA | RGB Vertical Stripe | 0.099×0.297 mm | 0.297×0.297 mm [85PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 304.128×228.096 mm | - | 331.6×254.76 mm | 12.5 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 1.30Kgs (Typ.) | - | - | ||
Sharp LQ150X1LW71U Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 250 cd/m² (Typ.) | ASV, Normally Black, Transmissive | 400:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 85/85/85/85 (Typ.)(CR≥10) | - |
LQ150X1LW71U supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.128(W)×228.096(H) mm, outline size of 331.6(W)×254.76(H) mm, net weight of 1.30Kgs (Typ.). As a ASV, Normally Black, Transmissive LCM product, LQ150X1LW71U can provides 250 cd/m² display brightness 400:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry .. This product adopted 4 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top and Bottom). LQ150X1LW71U utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm with power supply voltage of 3.3V (Typ.).
