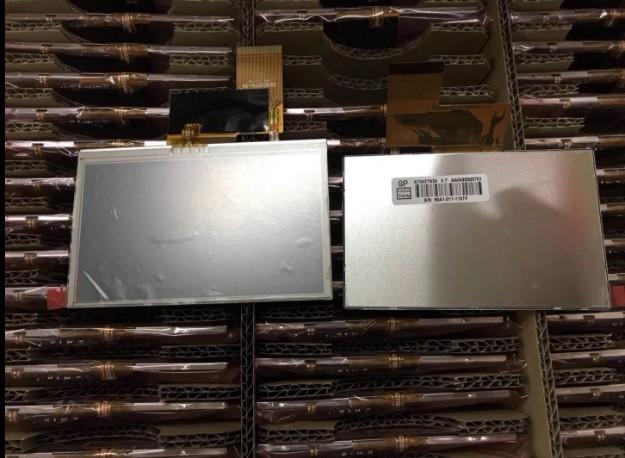

AT043TN24 V.7 Innolux 4.3" 480(RGB)×272 500 cd/m² INDUSTRIAL LCD DISPLAY

Price Negotiable
Price: Negotiable
MOQ: 1PCS
Delivery Time: 1-2 DAYS
Brand: INNOLUX
Product Description



Innolux AT043TN24 V.7 Mechanical Details

Pixel Features :
Resolution
480(RGB)×272, WQVGA
Dot Pitch(mm)
0.066×0.198 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.198×0.198 (H×V) [128PPI]
Mechanical Size :
Active Area(mm)
95.04(H) × 53.856(V)
Bezel Area(mm)
98.7(H) × 57.5(V)
Outline Dim.(mm)
105.5(H) × 67.2(V)
Depth(mm)
4.05±0.2
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
Touch Panel :
Touch Points
-
Touch Panel
4-wire Resistive Touch
Other Spec :
Weight
59.0g (Typ.)
Treatment
Antiglare



Innolux AT043TN24 V.7 Optical Details

Basic Information :
Luminance(cd/m²)
500 (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Viewing Angle
70/70/50/70 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
6 o'clock
Response(ms)
10/15 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.310; Wy:0.330
Display Colors
16.7M (8-bit)
Color Temperature
6638K
White Uniformity
1.33/1.43 (Typ./Max.)(9 points)



Innolux AT043TN24 V.7 Electronics Details

Reverse Scan :
No
Total Consumption:
614mW (Typ



Innolux AT043TN24 V.7 Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
17/25mA (Typ./Max.)
Consumption
56mW (Typ.)
Signal Type :
Parallel RGB (1 ch, 8-bit)
Logic Voltage
GND≤VIL≤0.2VDD; 0.8VDD≤VIH≤VDD
Interface Features :
Position
-
Type
FPC
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration


0.5 mm
40 pins
1 pcs
DRGB-40P1C8B-080A



Innolux AT043TN24 V.7 Backlight Details

Backlight Features :
Type
WLED
Quantity
8S1P
Position
Edge light type
Replacement
-
Shape
1 string
Life Time
20K(Min.) (Hours)
Lamp Electrical :
Voltage Supply
25.2/27.9/31.5V (Min./Typ./Max.)
Current Supply
18/20/22mA (Min./Typ./Max.)
Consumption
558mW (Typ.)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
No



Innolux AT043TN24 V.7 Packing Details

Package Box : Quantity Weight Box Size
80 pcs / box 7.10±0.36 Kgs 375×280×210 mm (L×W×H)



Innolux AT043TN24 V.7 Application Details

Basic Info : Panel Brand   Panel Model AT043TN24 V.7
Diagonal Size 4.3" Application




Panel Type a-Si TFT-LCD , LCM Model Alias -
Reliability : Operating Temp. -20 ~ 70 °C Storage Temp. -30 ~ 80 °C



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
