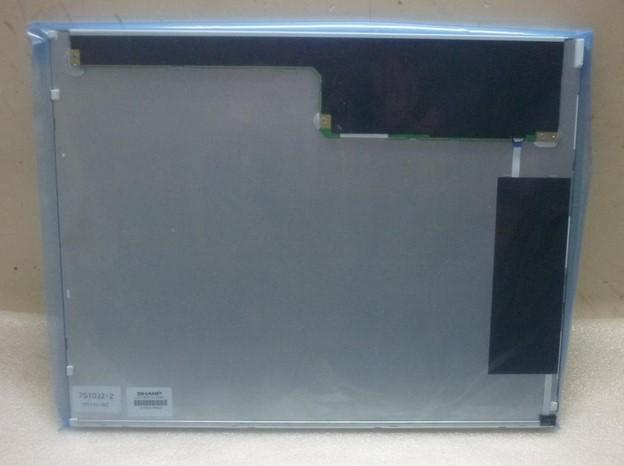

LQ150X1LG55 Sharp 15" LCM 1024×768RGB 350cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
SHARP
Product Description
LQ150 Series LQ150X1LG81 LQ150X1LG71 LQ150X1LG55 LQ150X1LG11
Sharp LQ150X1LG55 Optical Details
| Basic Information : | Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 550 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 2/6 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 60/60/45/55 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.2M (6-bit + FRC) |
| Color Temperature | 6485K | White Uniformity | 1.43 (Max.)(9 Points) | |
| 1931 Color Gamlt : | NTSC Ratio | 52% | sRGB | 72% coverage |
| Adobe RGB | 54% coverage | DCI-P3 | 54% coverage | |
| Rec.2020 | 39% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Sharp LQ150X1LG55 Mechanical Details
| Pixel Features : | Number of Pixel | 1024(RGB)×768 [XGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.099×0.297 mm | Pixel Pitch(W×H) | 0.297×0.297 mm [85PPI] | |
| Physical Size : | Active Viewing | 304.128(W)×228.096(H) mm | Overall Dim. | 326.5(W)×253.5(H) mm |
| Bezel Opening | 307.4(W)×231.3(H) mm | Overall Depth | 11.2/11.8 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail : | Mass | 1.00Kgs (Max.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
Sharp LQ150X1LG55 Interface Details
| Signal Electrical : | Input Current | 300mA (Typ.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | LVDS (1 ch, 8-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | DF14H-20P-1.25H | 1 pcs | 1.25 mm | 20 pins | LVDS-20P1C8B-010G | |
Sharp LQ150X1LG55 Lightting Details
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Edge light type (Top and Bottom) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 2 pcs | Life | 50K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 3.5/6.5/7.5mA (Min./Typ./Max.) | Input Voltage | 660V (Typ.) | ||
| Frequency | 40/55/70KHz (Min./Typ./Max.) | Turn-on Voltage | 1400V (Max.)(Ta=0℃) | |||
| Consumption | 8.6W (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHR-03VS-1 | 2 pcs | 4.0 mm | 3 pins | BLL-3PINS-HNL | |
| Backlight Driver : | No | |||||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
