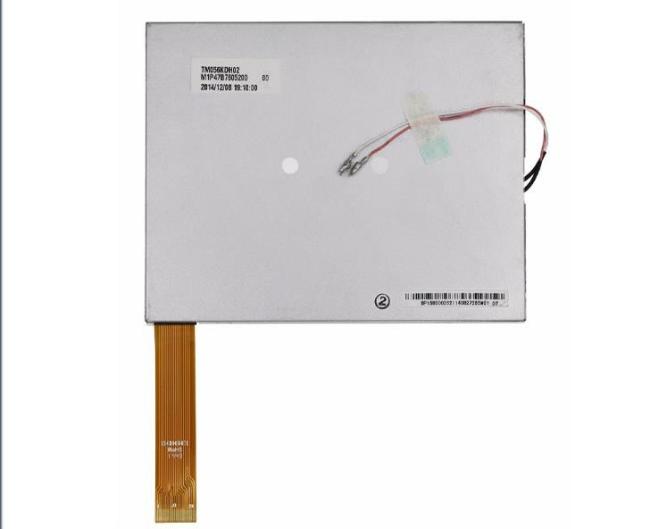

AT056TN04 V.6 Innolux 5.6" 320(RGB)×234 200 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
INNOLUX
Product Description
Innolux AT056TN04 V.6 Mechanical Details
| Pixel Features : | Resolution | 320(RGB)×234 | Dot Pitch(mm) | 0.118×0.362 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.354×0.362 (H×V) [71PPI] | |
| Mechanical Size : | Active Area(mm) | 113.28(H) × 84.708(V) | Bezel Area(mm) | 116.08(H) × 87.51(V) |
| Outline Dim.(mm) | 126.5(H) × 100(V) | Depth(mm) | 5.7±0.3 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Other Spec : | Weight | 133g (Typ.) | Treatment | Antiglare |
Innolux AT056TN04 V.6 Application Details
| Basic Information : | Brand | Model | AT056TN04 V.6 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 5.6" | Alias | - | |
| Environment : | Storage Temp. | -30 ~~ 85 °C | Operating Temp. | -30 ~~ 85 °C |
Innolux AT056TN04 V.6 Optical Details
| Basic Information : | Luminance(cd/m²) | 200 (Typ.) | Contrast Ratio | 300:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 65/65/45/65 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 15/20 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.300; Y:0.330 | Display Colors | Full color |
| Color Temperature | 7203K | White Uniformity | 1.33/1.43 (Typ./Max.)(9 points |
Innolux AT056TN04 V.6 Electronics Details
| Reverse Scan : | Yes (U/D, L/R) |
|---|---|
| Power Consumption : | 1.01W (Typ.) |
| Time Controller (T-CON) : | Need external T-CON |
Innolux AT056TN04 V.6 Interface Details
| Signal Electrical : | Voltage Supply | 5.0/5.0/15.0/-10V (Typ.)(VCC/AVDD/VGH/VGL) | Current Supply | 5.0/10.0/0.4/0.5mA (Typ.)(ICC/IDD/IGH/IGL) | ||
|---|---|---|---|---|---|---|
| Consumption | 86mW (Typ.) | |||||
| Signal Type : | TFT Specific Analog RGB | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 26 pins | 0.5 mm | ||||
Innolux AT056TN04 V.6 Backlight Details
| Backlight Features: | Shape | Array | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 2S7P | Life Time | 20K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 6.6±0.4V | Current Supply | 140±14mA | ||
| Consumption | 924mW(Typ.) | |||||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | BHSR-02VS-1 | 1 pcs | 2 pins | 3.5 mm | BLE-2PINS-AC | |
| Backlight Driver : | No | |||||
Innolux AT056TN04 V.6 Packing Details
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 60 pcs / box | 10.88±0.544 Kgs | 530×355×255 mm (L×W×H) |
