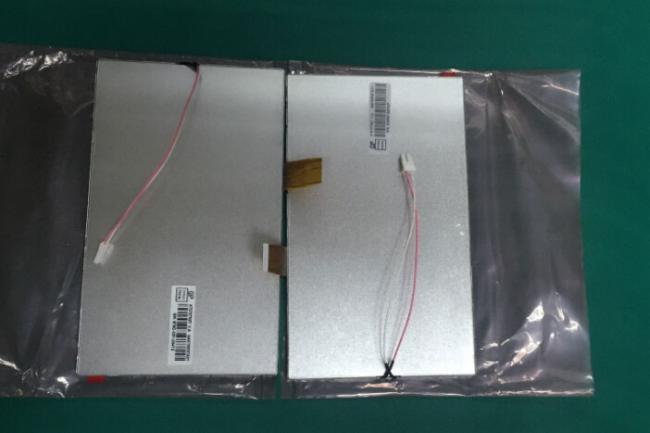

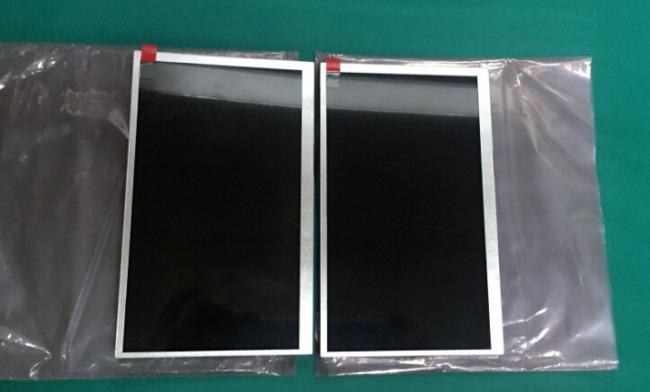

AT070TN07 Innolux 7.0" 480(RGB)×234 350 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
INNOLUX
Product Description
Innolux AT070TN07 Application Details
| Basic Detail : | Manufacturer | Model Name | AT070TN07 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 7.0 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -30 ~ 85 °C |
Innolux AT070TN07 Optical Details
| Basic Information : | Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 300 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 15/20 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 60/60/40/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Support Color | Full color |
| Color Temperature | 6638K | White Uniformity | 1.33/1.43 (Typ./Max.)(9 points) |
nnolux AT070TN07 Mechanical Details
| Pixel Features : | Number of Pixel | 480(RGB)×234 | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.107×0.370 mm | Pixel Pitch(W×H) | 0.321×0.370 mm [76PPI] | |
| Physical Size : | Active Viewing | 154.08(W)×86.58(H) mm | Overall Dim. | 164.9(W)×100(H) mm |
| Bezel Opening | 156.5(W)×89.00(H) mm | Overall Depth | 5.7±0.3 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | ||
| Fixation : | Without | |||
| Other Detail : | Mass | 167g (Typ.) | Surface | Antiglare |
Innolux AT070TN07 Electronics Details
| Reverse Scan : | Yes (U/D, L/R) |
|---|---|
| Power Consumption : | 1.891W (Typ.) |
| Time Controller (T-CON) : | Need external T-CON |
Innolux AT070TN07 Interface Details
| Signal Electrical : | Input Current | 3.0/17/0.2/0.8mA (Typ.)(ICC/IDD/IGH/IGL) | Input Voltage | 5.0/5.0/15.0/-10.0 (Typ.)(VCC/AVDD/VGH/VGL) | ||
|---|---|---|---|---|---|---|
| Consumption | 111mW (Typ.) | Signal Interface | TFT Specific Analog RGB | |||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 26 pins | |||||
Innolux AT070TN07 Lightting Details
| Lamp Features: | Lamp Shape | Array | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 3S9P | Life | 20K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 180mA (Typ.) | Input Voltage | 9.9/10.5V (Typ./Max.) | ||
| Consumption | 1.78W (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHSR-02VS-1 | 1 pcs | 3.5 mm | 2 pins | BLE-2PINS-AC | |
| Backlight Driver : | No | |||||
Innolux AT070TN07 Packing Details
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 50 pcs / box | 530×355×255 mm | 11.248 Kgs |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
