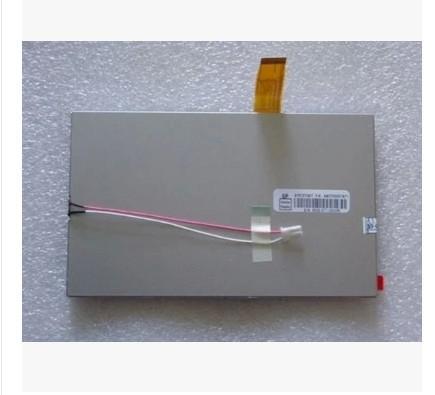

AT070TN07 V.D Innolux 7.0" 480(RGB)×234 200 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
INNOLUX
Product Description
Innolux AT070TN07 V.D Application Features
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| AT070TN07 V.D | a-Si TFT-LCD , LCM | AT070TN07 VD | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| - | -30 ~ 85 °C | -30 ~ 85 °C |
Innolux AT070TN07 V.D Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 200 (Typ.) | 60/60/40/60 (Typ.)(CR≥10) | 15/20 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 6 o'clock | TN, Normally White, Transmissive | 300 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6638K | Full color | X:0.310; Y:0.330 | |
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points | ||
Innolux AT070TN07 V.D Mechanical Features
| Panel Size : | 7.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 480(RGB)×234 | RGB Vertical Stripe | 0.321×0.370 [76PPI] | 0.107×0.370 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 154.08(H) × 86.58(V) | 156.5(H) × 89.00(V) | 164.9(H) × 100(V) | 5.7±0.3 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | ||
| Mounting : | Without | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 166g (Typ.) | - | Antiglare | ||
Innolux AT070TN07 V.D Electronics Features
| Reverse Scan : | Yes (U/D, L/R) |
|---|---|
| Power Consumption : | 0.855W (Typ.) |
Innolux AT070TN07 V.D Backlight Features
| Lamp Features: | Type | Position |
Quantity
|
Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 3S4P | Array | 20K(Min.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 8.4/9.3/10.5V (Min./Typ./Max.) | 80±8mA | 0.744W (Typ.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | BHSR-02VS-1 | 3.5 mm | 2 pins | 1 pcs | BLE-2PINS-AC | |
Innolux AT070TN07 V.D Interface Features
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| (3.3/5.0)/5.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL) | (NA/3.0)/17/0.2/0.8mA (Typ.)(ICC/IDD/IGH/IGL) | 111mW (Typ.) | ||||
| Interface Features : | Position | Signal | Type | |||
| - | TFT Specific Analog RGB | FPC | ||||
| FPC Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 0.5 mm | 26 pins | 1 pcs | ||||
Innolux AT070TN07 V.D Packing Features
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 50 pcs / box | 10.759±5% Kgs | 530×355×255 mm (L×W×H) |
