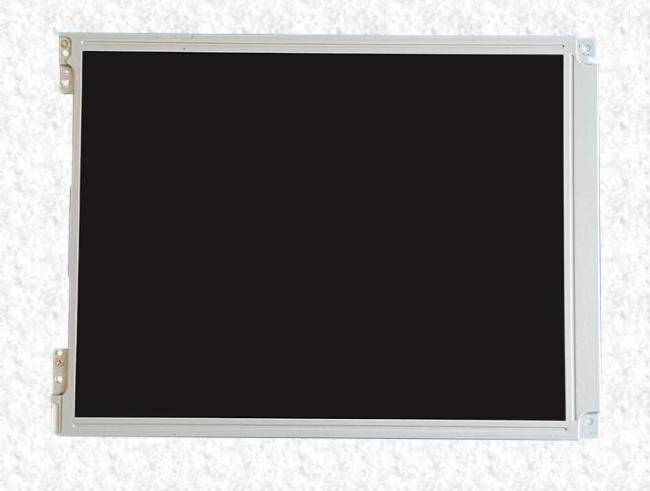

LQ140K1JX01 Sharp 14" LCM 1366×768RGB 600cd/m² INDUSTRIAL LCD DISPLAY
Sharp LQ140K1JX01 Mechanical Details
| Pixel Features : | Resolution | 1366(RGB)×768, WXGA | Dot Pitch(mm) | 0.0755×0.2265 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.2265×0.2265 (H×V) [112PPI] | |
| Mechanical Size : | Active Area(mm) | 309.399(H) × 173.952(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 322.9(H) × 189.44(V) | Depth(mm) | 2.05/5.5 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Slim (PCBA Bent, T≤3.0mm) |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Without | |||
| Other Spec : | Weight | 285/305g (Typ./Max.) | Treatment | Glare (Haze 0%), Hard coating (3H) |
Sharp LQ140K1JX01 Optical Details
| Basic Information : | Luminance(cd/m²) | 600 (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Display Mode | New Mode, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 25 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.302; Y:0.312 | Display Colors | 262K (6-bit) |
| Color Temperature | 7351K | White Uniformity | 1.40/1.82 (Max.)(5/13 points) |
Sharp LQ140K1JX01 Interface Details
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 220/424mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.73/1.4W (Typ./Max.) | |||||
| Signal Type : | eDP (1 Lane), eDP1.2, HBR1 (2.7G/lane) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| I-PEX | 20455-030E-12 | 1 pcs | 30 pins | 0.5 mm | EDP-30P1L-030G | |
Sharp LQ140K1JX01 Backlight Details
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 15K(Typ.) (Hours) | |
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 5.0/12.0/21.0V (Min./Typ./Max.) | Current Supply | 458/517mA (Typ./Max.) | ||
| Consumption | 5.5/6.2W (Typ./Max.) | |||||
LQ140K1JX01 supports display 1366(RGB)×768 (WXGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 309.399(W)×173.952(H) mm, outline size of 322.9(W)×189.44(H)×5.5(D) mm, with surface treament of Glare (Haze 0%), Hard coating (3H), net weight of 285/305g (Typ./Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a New Mode, Normally Black, Transmissive LCM product, LQ140K1JX01 can provides 600 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. LQ140K1JX01 utilizes eDP (1 Lane) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.)
.
