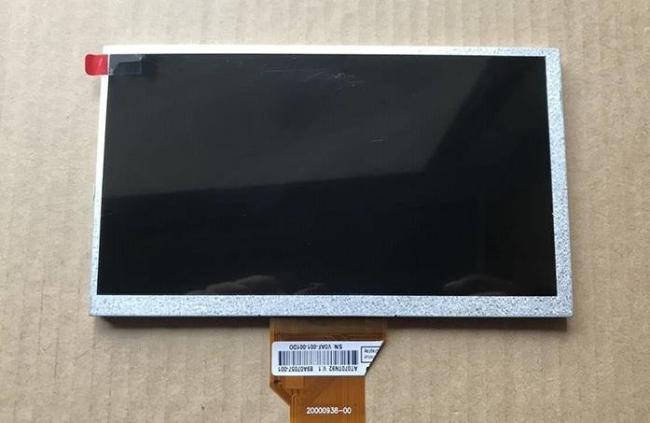

AT070TN92 V.1 CHIMEI Innolux 7.0" 800(RGB)×480 250 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
INNOLUX
Product Description
Chimei Innolux AT070TN92 V.1 Application Features
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| AT070TN92 V.1 | a-Si TFT-LCD , LCM | AT070TN92 V1 | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -20 ~ 70 °C | -30 ~ 80 °C |
Chimei Innolux AT070TN92 V.1 Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 250 (Typ.) | 70/70/50/70 (Typ.)(CR≥10) | 10/15 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 6 o'clock | TN, Normally White, Transmissive | 500 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6638K | 262K/16.2M (6-bit / 6-bit + Dithering) | X:0.310; Y:0.330 | |
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points) | ||
Chimei Innolux AT070TN92 V.1 Mechanical Features
| Panel Size : | 7.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 800(RGB)×480 [WVGA] | RGB Vertical Stripe | 0.1926×0.1790 [134PPI] | 0.0642×0.1790 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 154.08(H) × 85.92(V) | 156.7(H) × 89.1(V) | 164.9(H) × 100(V) | 5.7±0.3 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | ||
| Mounting : | Without | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 150g (Typ.) | - | Antiglare | ||
Chimei Innolux AT070TN92 V.1 Electronics Features
| Reverse Scan : | Yes (U/D, L/R) |
|---|---|
| Vertical Frequency : | 60Hz |
| Power Consumption : | 1.9W (Typ.) |
| Time Controller (T-CON) : | Embedded T-CON |
Chimei Innolux AT070TN92 V.1 Backlight Features
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 3S9P | Array | 20K(Min.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 9.3±0.6V | 170/180/200mA (Min./Typ./Max.) | 1.674W (Typ.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Included in signal interface | ||||
Chimei Innolux AT070TN92 V.1 Interface Features
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) | 4.0/20.0/0.2/0.2mA (Typ.)(DIDD/AIDD/IGH/IGL) | 0.226W (Typ.) | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3DVDD; 0.7DVDD≤VIH≤DVDD | |||||
| Interface Features : | Position | Signal | Type | |||
| - | Parallel RGB (1 ch, 6/8-bit) | FPC | ||||
| FPC Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 0.5 mm | 50 pins | 1 pcs | DRGB-50P1C8B-115A | |||
Chimei Innolux AT070TN92 V.1 Packing Features
| Box Type | Pcs/Box | Box Qty | Package LWH (mm) | G.W (kgs) | Volume (m³) | Remarks |
| Carton | 50 | 1 | 530×355×255 | 10.68 | 0.0480 | |
| Pallet | 1500 | 30 | N/A | N/A | N/A |
