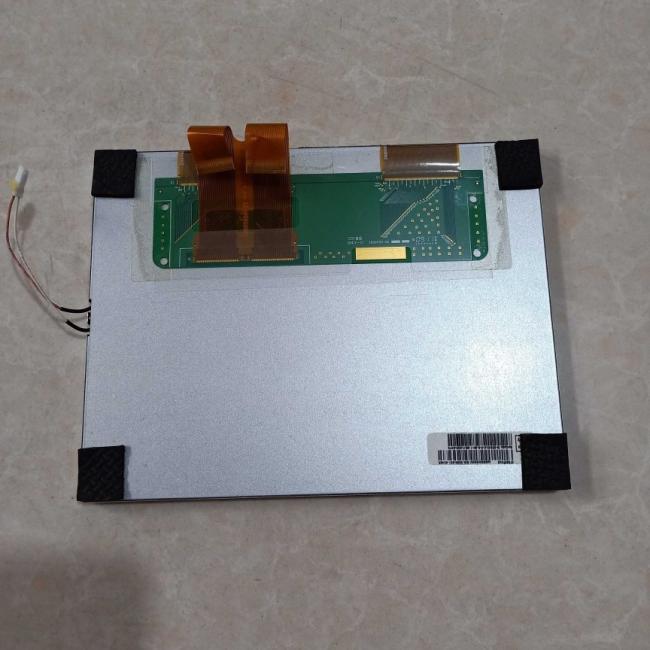

AT080TN42 Innolux 8.0" 800(RGB)×600 250 cd/m² INDUSTRIAL LCD DISPLAY

Price Negotiable
Price: Negotiable
MOQ: 1PCS
Delivery Time: 1-2 DAYS
Brand: INNOLUX
Product Description

Innolux AT080TN42 Mechanical Details

Pixel Features :
Resolution
800(RGB)×600, SVGA
Dot Pitch(mm)
0.0675×0.2025 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.2025×0.2025 (H×V) [125PPI]
Mechanical Size :
Active Area(mm)
162(H) × 121.5(V)
Bezel Area(mm)
165.20(H) × 124.70(V)
Outline Dim.(mm)
183(H) × 141(V)
Depth(mm)
6.3±0.3
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
4:3 (H:V)
Orientation
Landscape type
Other Spec :
Weight
261g (Typ.)
Treatment
Antiglare



Innolux AT080TN42 Optical Details

Basic Information :
Luminance(cd/m²)
250 (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Viewing Angle
70/70/50/70 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
6 o'clock
Response(ms)
10/15 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.310; Wy:0.330
Display Colors
262K (6-bit)
Color Temperature
6638K
White Uniformity
1.33/1.43 (Typ./Max.)(9 points)



Innolux AT080TN42 Electronics Details

Reverse Scan :
Yes (U/D, L/R)
Total Consumption:
2.132W (Typ.)
Time Controller (T-CON) :
Need external T-CON



Innolux AT080TN42 Interface Detail

Signal Electrical :
Voltage Supply
3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)
Current Supply
5.5/32.0/0.2/-0.2mA (Typ.)(ICC/IAVDD/IGH/IGL)
Consumption
350mW (Typ.)
Signal Type :
Parallel RGB (1 ch, 6-bit)
Logic Voltage
0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Interface Features :
Position
-
Type
FPC
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration


0.5 mm
30 pins
2 pcs



Innolux AT080TN42 Backlight Details

Backlight Features :
Type
WLED
Quantity
3S9P
Position
Edge light type
Replacement
-
Shape
Array
Life Time
20K(Min.) (Hours)
Lamp Electrical :
Voltage Supply
9.9±0.6V
Current Supply
180±18mA
Consumption
1.782W (Typ.)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
JST
BHSR-02VS-1
3.5 mm
2 pins
1 pcs
BLE-2PINS-AC
Backlight Driver :
No



Innolux AT080TN42 Packing Details

Package Box : Quantity Weight Box Size
30 pcs / box 10.884±5% Kgs 530×355×255 mm (L×W×H)



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
