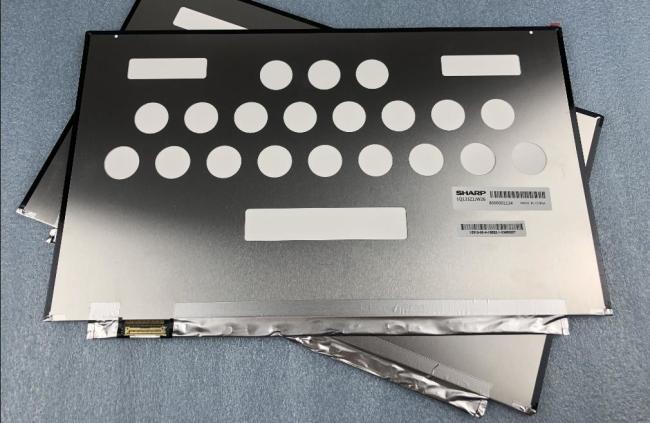

LQ133Z1JW21 Sharp 13.3" LCM 3200×1800RGB 400cd/m² INDUSTRIAL LCD DISPLAY
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
SHARP
Product Description
LQ133 Series LQ133Z1JW26 LQ133Z1JW25 LQ133Z1JW23 LQ133Z1JW21 LQ133Z1JW01
Sharp LQ133Z1JW21 Optical Details
| Basic Information : | Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | VA, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.53 (Max.)(5/13 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 71% | sRGB | 100% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Sharp LQ133Z1JW21 Mechanical Details
| Pixel Features : | Number of Pixel | 3200(RGB)×1800 | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0306×0.0918 mm | Pixel Pitch(W×H) | 0.0918×0.0918 mm [276PPI] | |
| Physical Size : | Active Viewing | 293.76(W)×165.24(H) mm | Overall Dim. | 299.46(W)×185.4(H) mm |
| Bezel Opening | - | Overall Depth | 2.15/4.7 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | Slim (PCBA Flat, T≤3.2mm) | |
| Fixation : | Without | |||
| Other Detail : | Mass | 190/210g (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
Sharp LQ133Z1JW21 Interface Details
| Signal Electrical : | Input Current | 455/545mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 1.5/1.8W (Typ./Max.) | Signal Interface | eDP (4 Lanes) | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| I-PEX | 20525-040E-02 | 1 pcs | 0.4 mm | 40 pins | ||
Sharp LQ133Z1JW21 Lightting Details
| Lamp Features: | Lamp Shape | 8 strings | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 7S8P | Life | 15K(Typ.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 267.5/295mA (Typ./Max.) | Input Voltage | 5.0/12.0/15.0V (Min./Typ./Max.) | ||
| Consumption | 3.21/3.54W (Typ./Max.) | |||||
