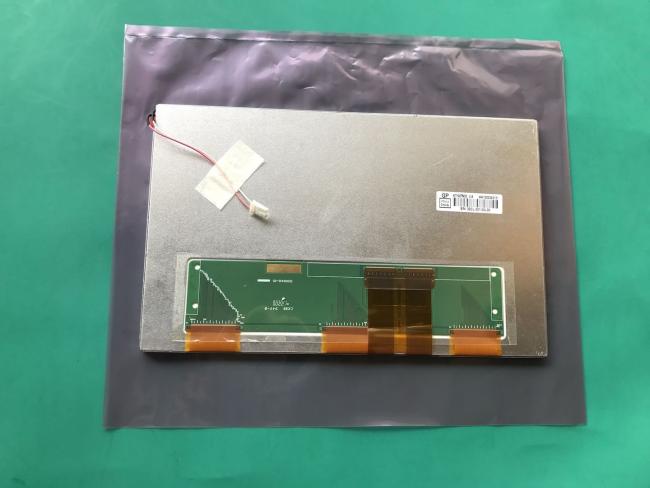

AT102TN03 V.8 Innolux 10.2" 800(RGB)×480 350 cd/m² INDUSTRIAL LCD DISPLAY

Price Negotiable
Price: Negotiable
MOQ: 1PCS
Delivery Time: 1-2 DAYS
Brand: INNOLUX
Product Description

Innolux AT102TN03 V.8 Application Details

Basic Information :
Brand

AT102TN03 V.8Model
Type
a-Si TFT-LCD , LCM
Used For

10.2 inchScreen Size
Alias
-
Environment :
Storage Temp.
-30 ~ 85 °C
Operating Temp.
-30 ~ 85 °C
RoHS
Vibratio

n



Innolux AT102TN03 V.8 Mechanical Details

Pixel Features :
Resolution
800(RGB)×480, WVGA
Dot Pitch(mm)
0.0925×0.2760 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.2775×0.2760 (H×V) [91PPI]
Mechanical Size :
Active Area(mm)
222(H) × 132.48(V)
Bezel Area(mm)
225.3(H) × 135.7(V)
Outline Dim.(mm)
235(H) × 145.8(V)
Depth(mm)
6.1±0.3
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
15:9 (H:V)
Orientation
Landscape type
Mounting :
Side mounting holes (6-M2) on left, right bezel
Other Spec :
Weight
332g (Typ.)
Treatment
Antiglare



Innolux AT102TN03 V.8 Optical Details

Basic Information :
Luminance(cd/m²)
350 (Typ.)
Contrast Ratio
300:1 (Typ.) (Transmissive)
Viewing Angle
65/65/45/65 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
6 o'clock
Response(ms)
15/20 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.310; Wy:0.330
Display Colors
262K (6-bit)
Color Temperature
6638K
White Uniformity
1.33/1.43 (Typ./Max.)(9 points)





Innolux AT102TN03 V.8 Interface Detail

Signal Electrical :
Voltage Supply
3.3/9.2/16/-7V (Typ.)(VCC/AVDD/VGH/VGL)
Current Supply
4.0/25/0.3/0.2mA (Typ.)(ICC/IAVDD/IGH/IGL)
Consumption
250mW (Typ.)
Signal Type :
TTL (1 ch, 6-bit)
Logic Voltage
0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Interface Features :
Position
-
Type
FPC
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration


0.5 mm
30 pins
2 pcs



Innolux AT102TN03 V.8 Backlight Details

Backlight Features :
Type
WLED
Quantity
3S10P
Position
Edge light type (Top side)
Replacement
-
Shape
Array
Life Time
20K(Min.) (Hours)
Lamp Electrical :
Voltage Supply
8.4/9.3/10.5V (Min./Typ./Max.)
Current Supply
200±20mA
Consumption
1.86W (Typ.)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
JST
BHSR-02VS-1
3.5 mm
2 pins
1 pcs
BLE-2PINS-AC
Backlight Driver :
No
