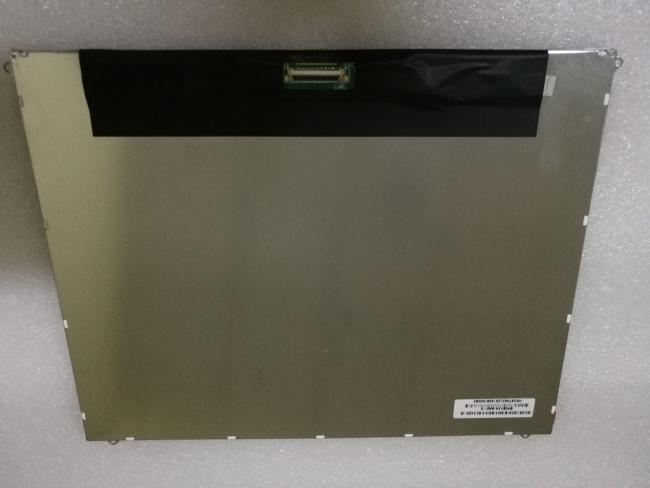

BF097XN CHIMEI Innolux 9.7" 1024(RGB)×768 420 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
INNOLUX
Product Description
Chimei Innolux BF097XN Application Details
| Basic Detail : | Manufacturer | Model Name | BF097XN | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 9.7 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Vibration Level | - | RoHS |
Chimei Innolux BF097XN Optical Details
| Basic Information : | Luminance | 420 cd/m² (Typ.) | Contrast Ratio | 900 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 20 (Typ.)(G to G); 20 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.327 | Support Color | 262K (6-bit) |
| Color Temperature | 6666K | White Uniformity | 1.25/1.43 (Typ./Max.)(160 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 53% | sRGB | 74% coverage |
| Adobe RGB | 56% coverage | DCI-P3 | 55% coverage | |
| Rec.2020 | 40% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Chimei Innolux BF097XN Mechanical Details
| Pixel Features : | Number of Pixel | 1024(RGB)×768 [XGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.064×0.192 mm | Pixel Pitch(W×H) | 0.192×0.192 mm [132PPI] | |
| Physical Size : | Active Viewing | 196.608(W)×147.456(H) mm | Overall Dim. | 210(W)×164.25(H) mm |
| Bezel Opening | - | Overall Depth | 2.85/5.25 (Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Face mounting holes (4 pcs) on left, right, down slugs | |||
| Other Detail : | Mass | 143g (Max.) | Surface | Glare (Haze 0%), Hard coating (3H) |
Chimei Innolux BF097XN Electronics Details
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Power Consumption : | 3.14W (Max.) |
Chimei Innolux BF097XN Interface Details
| Signal Electrical : | Input Current | 297/327mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.98W (Max.) | Signal Interface | LVDS (1 ch, 6-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| I-PEX | 20525-030E-02 | 1 pcs | 0.4 mm | 30 pins | LVDS-30P1C6B-070F | |
Chimei Innolux BF097XN Lightting Details
| Lamp Features: | Lamp Shape | 6 strings | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 6S6P | Life | 15K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 20mA (Typ.) | Input Voltage | 15.6/17.4/18V (Min./Typ./Max.) | ||
| Consumption | 2.16W (Max.) | |||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
