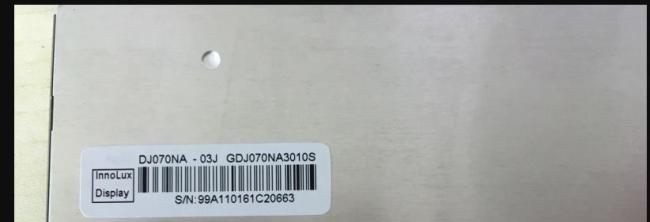

DJ070NA-03J Innolux 7.0" 800(RGB)×480 750 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
INNOLUX
Product Description
Innolux DJ070NA-03J Application Details
| Basic Info : | Panel Brand | Panel Model | DJ070NA-03J | |
|---|---|---|---|---|
| Diagonal Size | 7.0" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -30 ~ 85 °C | Storage Temp. | -40 ~ 90 °C |
| RoHS State | Vibration Rating | 1.5G (14.7 m/s²) |
Innolux DJ070NA-03J Mechanical Details
| Pixel Features : | Pixel Format | 800(RGB)×480 [WVGA] | Dot Pitch | 0.0642×0.1790 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1926×0.1790 mm (H×V) [134PPI] | |
| Mechanical Size : | Display Area | 154.08×85.92 mm (H×V) | Bezel Area | 157.08×89.92 mm (H×V) |
| Outline Dim. | 164.9×100 mm (H×V) | Outline Depth | 5.7±0.3 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | ||
| Holes & Brackets : | Without | |||
| Other Features : | Weight | 130g (Typ.) | Surface | Antiglare |
Innolux DJ070NA-03J Optical Details
| Basic Information : | Brightness | 750 cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | - | Response Time | 25 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Color Numbers | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Temperature | 6638K | White Uniformity | 1.33/1.43 (Typ./Max.)(9 points) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
Innolux DJ070NA-03J Backlight Details
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 20K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | - | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 21.7±2.1V | Current Input | 156mA (Typ.) | ||
| Consumption | 3.39W (Typ.) | |||||
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | No |
Innolux DJ070NA-03J Interface Details
| Signal Systerm : | Parallel RGB (1 ch, 6/8-bit) | Logic Voltage | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) | Current Input | 4.0/20/0.2/0.2mA (Typ.)(DIDD/IAIDD/IGH/IGL) | ||
| Consumption | 0.23W (Typ.) | |||||
| Interface Features : | Type | FPC | Position | - | ||
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 0.5 mm | 50 pins | 1 pcs | ||||

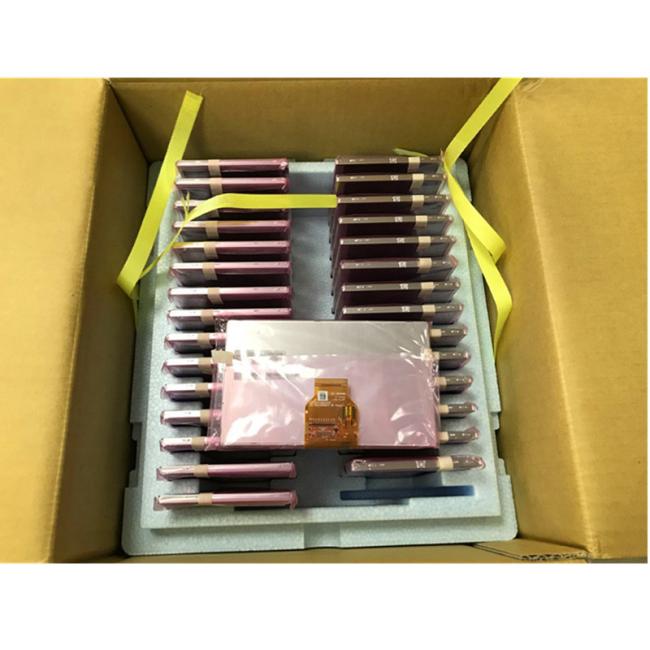

Innolux DJ070NA-03J Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 30 pcs / box | 7.0 Kgs | 398×352×280 mm |
