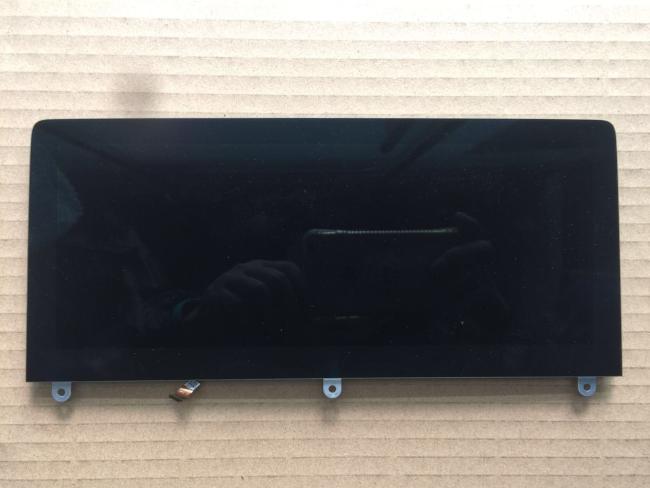

DJ103IA-03B Innolux 10.3" 1920(RGB)×720 800 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
INNOLUX
Product Description
Innolux DJ103IA-03B Application Details
| Basic Detail : | Manufacturer | Model Name | DJ103IA-03B | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 10.3 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -40 ~ 90 °C |
| Vibration Level | 1.5G (14.7 m/s²) | RoHS |
Innolux DJ103IA-03B Optical Details
| Basic Information : | Luminance | 800 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 15/10 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | AAS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.310 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6852K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 85% | sRGB | 98% coverage |
| Adobe RGB | 84% coverage | DCI-P3 | 88% coverage | |
| Rec.2020 | 63% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
Innolux DJ103IA-03B Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)×720 | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0423×0.1269 mm | Pixel Pitch(W×H) | 0.1269×0.1269 mm [200PPI] | |
| Physical Size : | Active Viewing | 243.648(W)×91.368(H) mm | Overall Dim. | 259.84(W)×109.3(H) mm |
| Bezel Opening | 246.05(W)×93.77(H) mm | Overall Depth | 8.5/16 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 8:3 | Shape Style | ||
| Fixation : | Rear mounting Pole (6-M3) | |||
| Other Detail : | Mass | 380g (Max.) | Surface | Antiglare |
Innolux DJ103IA-03B Interface Details
| Signal Electrical : | Input Current | 400/450mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 1.4W (Typ.) | Signal Interface | LVDS (2 ch, 8-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 12003S-50Y901 | 1 pcs | 50 pins | ||||
Innolux DJ103IA-03B Lightting Details
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 20K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 240mA (Typ.) | Input Voltage | 27.9±2.2V | ||
| Consumption | 6.7W (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 8 pins | |||||
| Backlight Driver : | No | |||||
