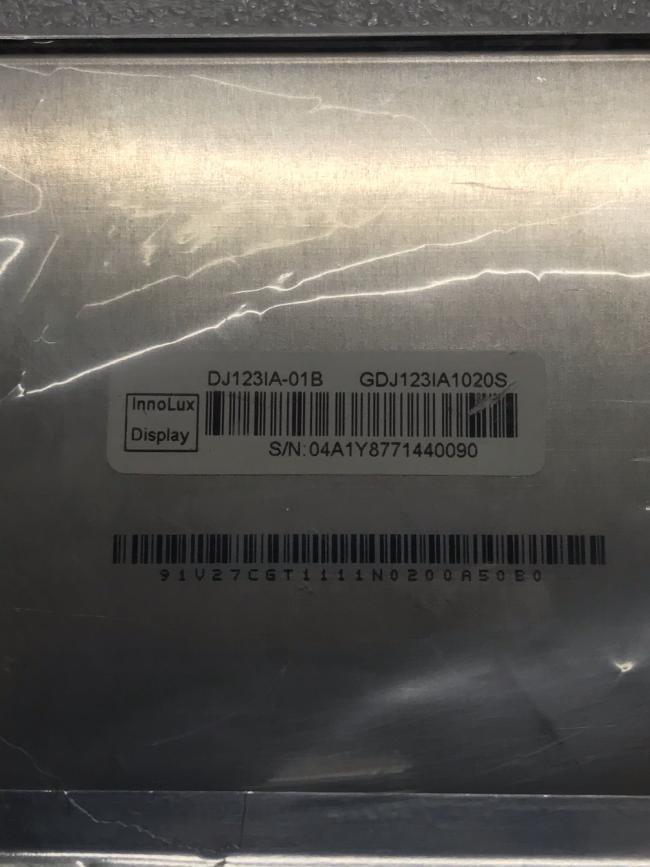

DJ123IA-01B Innolux 12.3" 1920(RGB)×720 750 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
INNOLUX
Product Description
Innolux DJ123IA-01B Application Features
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| DJ123IA-01B | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -30 ~ 85 °C | -40 ~ 90 °C | - | ||
| Designed For : |
|
|||
Innolux DJ123IA-01B Mechanical Features
| Panel Size : | 12.3 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1920(RGB)×720 | RGB Vertical Stripe | 0.0508×0.1524 mm | 0.1524×0.1524 mm [166PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 292.608×109.728 mm | 295.61×112.73 mm | 310×129.1 mm | 7.5/15.5 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 8:3 (W : H) | Landscape type | ||
| Fixation : | Rear mounting Pole (6 pcs) | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 463g (Max.) | |||
Innolux DJ123IA-01B Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 750 cd/m² (Typ.) | AAS, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 85/85/85/85 (Typ.)(CR≥10) | Symmetry | 15/10 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
| Luminance Variation : | 1.25/1.33 (Typ./Max.)(9 points) | ||
| Performance : | 3D Type | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | ||
Innolux DJ123IA-01B Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 450/500mA (Typ./Max.) | 3.3V (Typ.) | 1.5W (Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | LVDS (2 ch, 8-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 12003S-50Y901 | 1 pcs | 50 pins | ||||
Innolux DJ123IA-01B Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 30K(Min.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 220mA (Typ.) | 33.6/39.6V (Min./Max.) | 8.8W (Typ.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | FPC | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 10 pins | |||||
Innolux DJ123IA-01B Packing Features
| Package Carton : | Amount | Weight | Carton Size |
|---|---|---|---|
| 20 pcs / box | 12.34 Kgs | 566×406×216 mm (L×W×H) |
