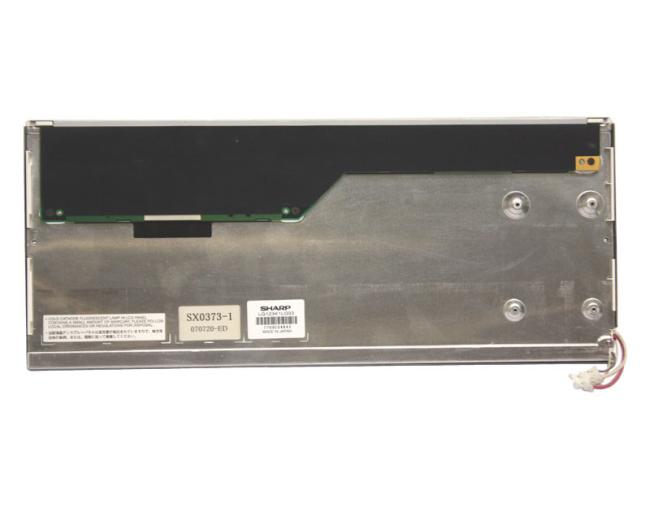

LQ123K1LG03 Sharp 12.3" LCM 1280×480RGB 330cd/m² INDUSTRIAL LCD DISPLAY
LQ123 Series LQ123K3LG01 LQ123K1LG03
Sharp LQ123K1LG03 Optical Details
| Basic Information : | Luminance | 330 cd/m² (Typ.) | Contrast Ratio | 400 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 35 (Typ.)(Tr+Td); 10 (Typ.)(G to G) (ms) | |
| Viewing Angle | 65/65/50/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.2M (6-bit + FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 73% | sRGB | 94% coverage |
| Adobe RGB | 76% coverage | DCI-P3 | 76% coverage | |
| Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Sharp LQ123K1LG03 Mechanical Details
| Pixel Features : | Number of Pixel | 1280(RGB)×480 [DVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.076×0.228 mm | Pixel Pitch(W×H) | 0.228×0.228 mm [111PPI] | |
| Physical Size : | Active Viewing | 291.84(W)×109.44(H) mm | Overall Dim. | 312.4(W)×130.4(H) mm |
| Bezel Opening | 295(W)×113.4(H) mm | Overall Depth | 10.6/26.4 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 8:3 | Shape Style | ||
| Fixation : | Without | |||
| Other Detail : | Mass | 530±40g | Surface | Antiglare, Hard coating (3H) |
Sharp LQ123K1LG03 Interface Details
| Signal Electrical : | Input Current | 450/530mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | LVDS (1 ch, 8-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | DF14H-20P-1.25H(56) | 1 pcs | 1.25 mm | 20 pins | LVDS-20P1C8B-010G | |
Sharp LQ123K1LG03 Lightting Details
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | Replaceable | Amount | 2 pcs | Life | 50K(Min.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | S6B-ZR-SM4A-TF(LF)(SN) | 1 pcs | 1.5 mm | 6 pins | ||
| Backlight Driver : | With Inverter | |||||
| Driver Electrical : | Input Current | 1.1/1.65A (Typ./Max.) | Input Voltage | 12.0V (Typ.) | ||
LQ123K1LG03 supports display 1280(RGB)×480 (DVGA) with aspect ratio of 8:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 291.84(W)×109.44(H) mm, outline size of 312.4(W)×130.4(H)×26.4(D) mm, viewing area size of 295(W)×113.4(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 530±40g. As a TN, Normally White, Transmissive LCM product, LQ123K1LG03 can provides 330 cd/m² display brightness 400:1 transimissive contrast ratio, 65/65/50/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 35 (Typ.)(Tr+Td); 10 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 16.2M colors, also with performance of color gamut 72% (NTSC). This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With Inverter.
