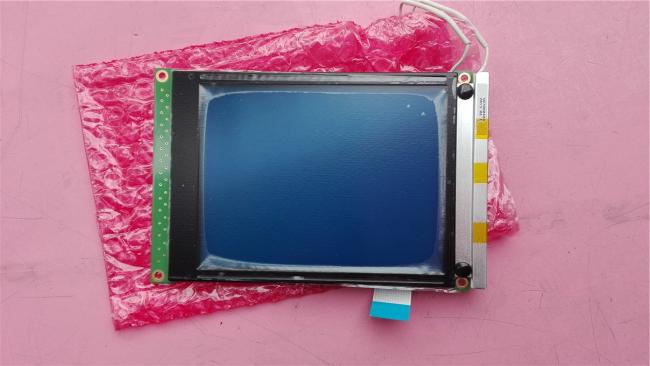

DMF-50840NB-FW-ASE-BFN Kyocera 5.7INCH LCM 320×240RGB 60NITS CCFL INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2day
Brand:
Kyocera
Product Description
OPTREX DMF-50840NB-FW-ASE-BFN Application Features
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| DMF-50840NB-FW-ASE-BFN | STN-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 60 °C | -20 ~ 60 °C |
OPTREX DMF-50840NB-FW-ASE-BFN Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 60 (Typ.) | - | 250/280 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 6 o'clock | STN, Blue mode, Transmissive | 5 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| - | Monochrome | - | |
| White Variation : | 1.43 (Max.)(9 points) | ||
OPTREX DMF-50840NB-FW-ASE-BFN Mechanical Features
| Panel Size : | 5.7" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 320×240 [QVGA] | Rectangle | 0.360×0.360 [70PPI] | 0.360×0.360 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 115.17(H) × 86.37(V) | 120.0(H) × 90.0(V) | 167.1(H) × 109(V) | 11.0 (Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||
| Mounting : | Face mounting holes (4-Φ3.5) | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 230g (Max.) | - | - | ||
OPTREX DMF-50840NB-FW-ASE-BFN Electronics Features
| Reverse Scan : | No |
|---|---|
| Vertical Frequency : | 75Hz |
OPTREX DMF-50840NB-FW-ASE-BFN Backlight Features
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| CCFL | Edge light type | 1 pcs | Straight | 20K(Min.) | - | |
| CCFL Electrical : | Voltage Supply | Current Supply | Power | |||
| 340V (Typ.) | 4.0±1.0mA | |||||
| Operating Frequency | Kick-off Voltage | |||||
| 850V (Min.)(Ta=0℃) | ||||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 4 pins | 1 pcs | BLL-4PINS-HNNL | ||||
OPTREX DMF-50840NB-FW-ASE-BFN Interface Features
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 5.0V (Typ.) | 5.5/15.0mA (Typ./Max.) | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | Parallel Data (4-bit) | FPC | ||||
| FPC Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 1.25 mm | 14 pins | 1 pcs | ||||
