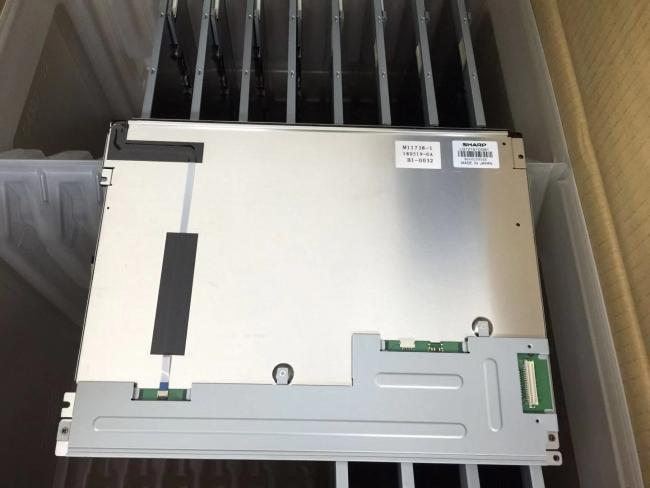

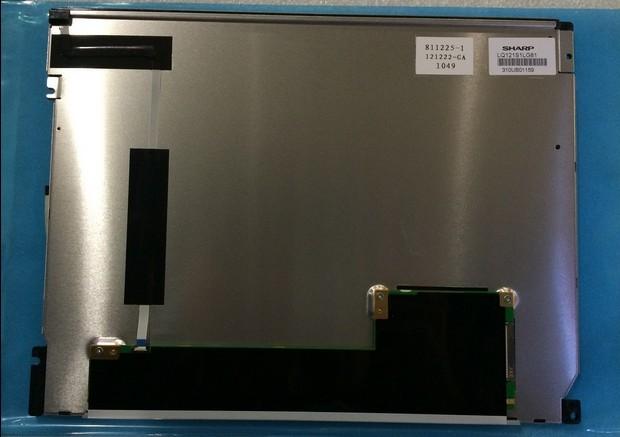

LQ121S1LG81 Sharp 12.1" LCM 800×600RGB  450cd/m² INDUSTRIAL LCD DISPLAY

Price Negotiable
Price: Negotiable
MOQ: 1PCS
Delivery Time: 1-2 DAYS
Brand: SHARP
Product Description

LQ121 Series   LQ121S1LG84   LQ121S1LG81   LQ121S1LG79   LQ121S1LG75



Sharp LQ121S1LG81 Mechanical Details

Pixel Features :
Resolution
800(RGB)×600, SVGA
Dot Pitch(mm)
0.1025×0.3075 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.3075×0.3075 (H×V) [82PPI]
Mechanical Size :
Active Area(mm)
246(H) × 184.5(V)
Bezel Area(mm)
249.0(H) × 187.5(V)
Outline Dim.(mm)
276(H) × 209(V)
Depth(mm)
9.1±0.5
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
4:3 (H:V)
Orientation
Landscape type
Mounting :
Face mounting holes (2-Φ3.4, 2-R1.7) on left, right bezel
Other Spec :
Weight
600g (Max.)
Treatment
Antiglare, Hard coating (3H)





Sharp LQ121S1LG81 Optical Details

Basic Information :
Luminance(cd/m²)
450 (Typ.)
Contrast Ratio
800:1 (Typ.) (Transmissive)
Viewing Angle
80/80/60/80 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
6 o'clock
Response(ms)
30 (Typ.)(Tr+Td)
Color Performance :
White Coordinate
Wx:0.305; Wy:0.320
Display Colors
262K (6-bit)
Color Temperature
7037K
White Uniformity
1.33 (Max.)(5 points)
1931 Color Gamlt :
NTSC Ratio
49%
sRGB
68% coverage
Adobe RGB
52% coverage
DCI-P3
51% coverage
Rec.2020
37% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)





Sharp LQ121S1LG81 Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
270/350mA (Typ.)
Signal Type :
LVDS (1 ch, 6-bit)
Logic Voltage
-
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
JAE
FI-SEB20P-HF
1.25 mm
20 pins
1 pcs
LVDS-20P1C6B-070D



Sharp LQ121S1LG81 Backlight Details

Backlight Features :
Type
WLED
Quantity
-
Position
Edge light type (Top side)
Replacement
-
Shape
-
Life Time
50K(Typ.) (Hours)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
JST
SM06B-SHLS-TF
1.0 mm
6 pins
1 pcs

Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
12.0±1.2V
Current Supply
350/500mA (Typ./Max.)
