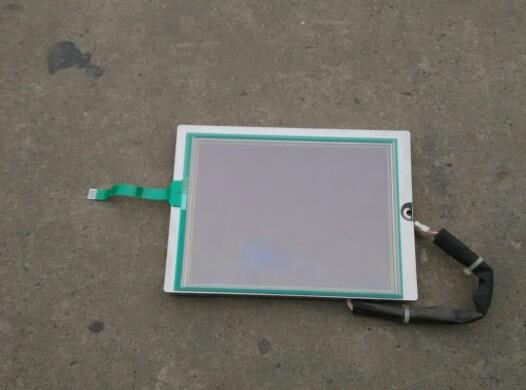

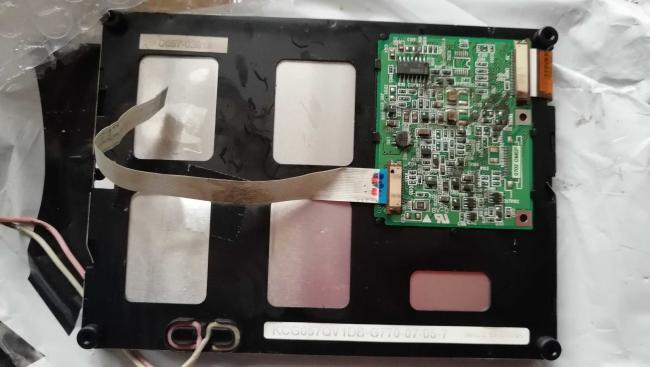

KCG057QV1DB-G52 Kyocera 5.7INCH LCM 320×240RGB 350NITS CCFL INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2day
Brand:
Kyocera
Product Description
Kyocera KCG057QV1DB-G52 Application Features
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| KCG057QV1DB-G52 | CSTN-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 60 °C | -20 ~ 60 °C |
Kyocera KCG057QV1DB-G52 Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 350 (Typ.) | 50/50/20/35 (Typ.)(CR≥2) | 180/170 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| - | STN, Normally Black, Transmissive | 60 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 7732K | Color | X:0.300; Y:0.300 |
Kyocera KCG057QV1DB-G52 Mechanical Features
| Panel Size : | 5.7" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 320(RGB)×240 [QVGA] | RGB Vertical Stripe | 0.360×0.360 [70PPI] | 0.120×0.360 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 115.2(H) × 86.4(V) | 119.4(H) × 90.6(V) | 144(H) × 104.8(V) | 9.0/13.2 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||
| Mounting : | Rear mounting poles (4-Φ2.6) | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 175g | - | Glare (Haze 0%) | ||
Kyocera KCG057QV1DB-G52 Electronics Features
| Reverse Scan : | No |
|---|---|
| Vertical Frequency : | 75Hz |
Kyocera KCG057QV1DB-G52 Backlight Features
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| CCFL | Edge light type | 1 pcs | U shape | 75K(Typ.) | - | |
| CCFL Electrical : | Voltage Supply | Current Supply | Power | |||
| 685V (Typ.) | 3.0/4.0/6.0mA (Min./Typ./Max.) | |||||
| Operating Frequency | Kick-off Voltage | |||||
| 30/100KHz (Min./Max.) | 1035/1550V Max.)(Ta=+25/0℃) | |||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | Optional | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | BHR-03VS-1 | 4.0 mm | 3 pins | 1 pcs | BLL-3PINS-HNL | |
Kyocera KCG057QV1DB-G52 Interface Features
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3/5.0V (Typ.)(VDD) | 40.5/27.0mA (Typ.)(3.3V/5.0V)(IDD) | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | Parallel Data (8-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| Kyocera Elco | 08-6210-020-340-800 | 0.5 mm | 20 pins | 1 pcs | ||
