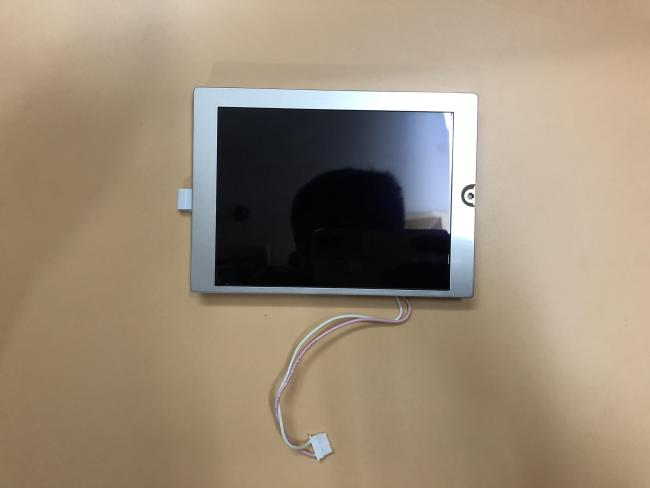

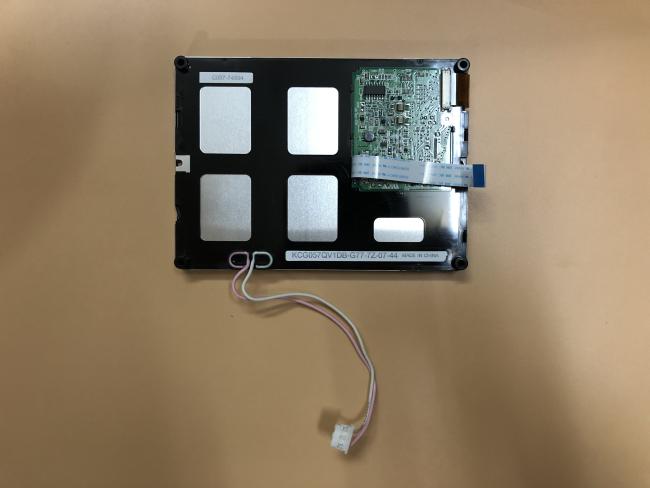

KCG057QV1DB-G77 Kyocera 5.7INCH LCM 320×240RGB 380NITS CCFL INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2day
Brand:
Kyocera
Product Description
Kyocera KCG057QV1DB-G77 Application Details
| Basic Detail : | Manufacturer | Model Name | KCG057QV1DB-G77 | |
|---|---|---|---|---|
| Panel Type | CSTN-LCD , LCM | Another Name | - | |
| Panel Size | 5.7 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | - | ST Temperature | - |
| Vibration Level | - | RoHS |
Kyocera KCG057QV1DB-G77 Optical Details
| Basic Information : | Luminance | 380 cd/m² (Typ.) | Contrast Ratio | 60 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | - | Response Speed | 450 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 55/55/60/75 (Typ.)(CR≥2) | Operating Mode | STN, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | - | Support Color | Color |
Kyocera KCG057QV1DB-G77 Mechanical Details
| Pixel Features : | Number of Pixel | 320(RGB)×240 [QVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.120×0.360 mm | Pixel Pitch(W×H) | 0.360×0.360 mm [70PPI] | |
| Physical Size : | Active Viewing | 115.2(W)×86.4(H) mm | Overall Dim. | 144(W)×104.8(H) mm |
| Bezel Opening | 119.4(W)×90.6(H) mm | Overall Depth | 9.0/13.2 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Rear mounting poles (4-Φ2.6) | |||
| Other Detail : | Mass | 175g (Typ.) | Surface | |
Kyocera KCG057QV1DB-G77 Electronics Details
| Refresh Rate : | 75Hz |
|---|---|
| Reverse Scan : | No |
| Driving Method : | Duty: 1/240 |
Kyocera KCG057QV1DB-G77 Interface Details
| Signal Electrical : | Input Current | - | Input Voltage | 3.3/5.0V (Typ.)(VDD) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | Parallel Data (8-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| Kyocera Elco | 08-6210-020-340-800+ | 1 pcs | 0.5 mm | 20 pins | ||
Kyocera KCG057QV1DB-G77 Lightting Details
| Lamp Features: | Lamp Shape | U shape | Lamp Type | CCFL | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 1 pcs | Life | 75K(Typ.) (Hours) | |
| Lamp Electrical : | Input Current | 3.0/4.0/6.0mA (Min./Typ./Max.) | Input Voltage | 685V (Typ.) | ||
| Frequency | 30/100KHz (Min./Max.) | Turn-on Voltage | 1035/1550V (Max.)(Ta=+25/0°) | |||
| Consumption | 2.74W (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHR-03VS-1 | 1 pcs | 4.0 mm | 3 pins | BLL-3PINS-HNL | |
| Backlight Driver : | No | |||||
