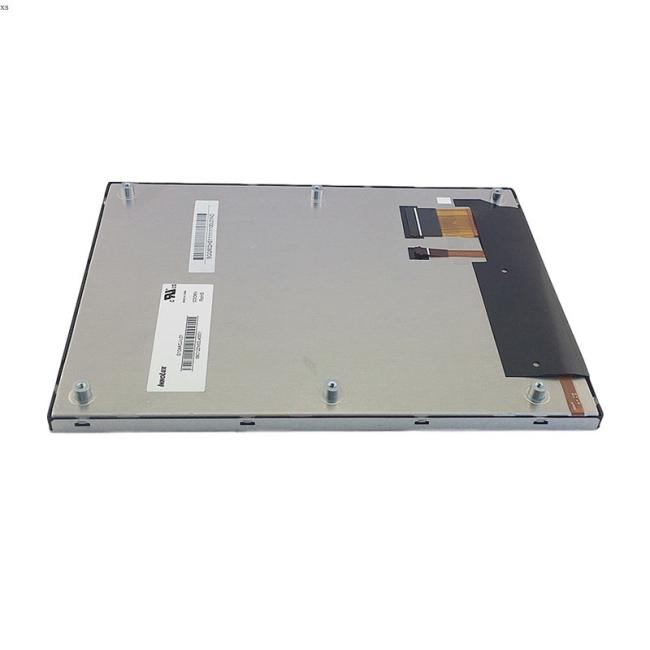

G104ACJ-L01 INNOLUX 10.4" 960(RGB)×1280 900 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
INNOLUX
Product Description
Innolux G104ACJ-L01 Application Details
| Basic Detail : | Manufacturer | Model Name | G104ACJ-L01 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 10.4 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | -40 ~ 85 °C | ST Temperature | -40 ~ 90 °C |
| Vibration Level | 1.5G (14.7 m/s²) | RoHS |
Innolux G104ACJ-L01 Optical Details
| Basic Information : | Luminance | 900 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 13/12 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | AAS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.42 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 73% | sRGB | 93% coverage |
| Adobe RGB | 72% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity |
Innolux G104ACJ-L01 Mechanical Details
| Pixel Features : | Number of Pixel | 960(RGB)×1280 [Quad-VGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.055×0.165 mm | Pixel Pitch(W×H) | 0.165×0.165 mm [153PPI] | |
| Physical Size : | Active Viewing | 158.4(W)×211.2(H) mm | Overall Dim. | 173.4(W)×228.7(H) mm |
| Bezel Opening | 160.6(W)×213.9(H) mm | Overall Depth | 8/14.27 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Portrait type |
| Aspect Ratio(W:H) | 3:4 | Shape Style | ||
| Fixation : | Rear mounting Pole (6-M2.5) | |||
| Other Detail : | Mass | 450/470g (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
Innolux G104ACJ-L01 Interface Details
| Signal Electrical : | Input Current | 400/480mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 1.32/1.58W (Typ./Max.) | Signal Interface | LVDS (1 ch, 8-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | FH52-50S-0.5SH | 1 pcs | 0.5 mm | 50 pins | ||
Innolux G104ACJ-L01 Lightting Details
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 50K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 95/100mA (Typ./Max.) | Input Voltage | 26.5/29.2/32.9V (Min./Typ./Max.) | ||
| Consumption | 8.32/9.38W (Typ./Max.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | FH52-10S-0.5SH | 1 pcs | 0.5 mm | 10 pins | ||
| Backlight Driver : | No | |||||
Innolux G104ACJ-L01 Packing Details
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 18 pcs / box | 490×350×320 mm | 10.1 Kgs |
