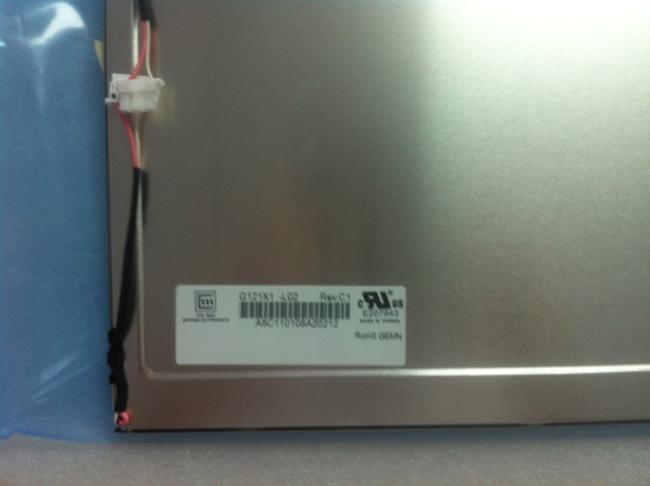

G121X1-L02 CMO 12.1" 1024(RGB)×768 500 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
CMO
Product Description
CMO G121X1-L02 Application Details
| Basic Information : | |
|---|---|
| Environment : |
CMO G121X1-L02 Optical Details
| Basic Information : | Luminance | 500 cd/m² (Typ.) | Contrast Ratio | 700 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | - | Response Speed | 6/17 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.308; Wy:0.318 | Support Color | 262K (6-bit) |
| Color Temperature | 6879K | White Uniformity | 1.25/1.40 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 46% | sRGB | 64% coverage |
| Adobe RGB | 48% coverage | DCI-P3 | 48% coverage | |
| Rec.2020 | 34% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
CMO G121X1-L02 Mechanical Details
| Pixel Features : | Number of Pixel | 1024(RGB)×768 [XGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.080×0.240 mm | Pixel Pitch(W×H) | 0.240×0.240 mm [105PPI] | |
| Physical Size : | Active Viewing | 245.76(W)×184.32(H) mm | Overall Dim. | 260.5(W)×204(H) mm |
| Bezel Opening | 249.0(W)×187.5(H) mm | Overall Depth | 12.2±0.5 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Side mounting holes (4-M2) on left, right bezel | |||
| Other Detail : | Mass | 700g (Max.) | Surface | Glare (Haze 0%), Hard coating (3H) |
CMO G121X1-L02 Electronics Details
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
CMO G121X1-L02 Interface Details
| Signal Electrical : | Input Current | 510mA (Typ.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 1.68W (Typ.) | Signal Interface | LVDS (1 ch, 6-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JAE | FI-SEB20P-HFE | 1 pcs | 1.25 mm | 20 pins | LVDS-20P1C6B-070A | |
CMO G121X1-L02 Lightting Details
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Edge light type (Top and Bottom) |
|---|---|---|---|---|---|---|
| Exchange | Replaceable | Amount | 2 pcs | Life | 50K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 2.0/8.0/8.5mA (Min./Typ./Max.) | Input Voltage | 500±50V | ||
| Frequency | 45/80KHz (Min./Max.) | Turn-on Voltage | - | |||
| Consumption | 8.0W (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHR-03VS-1 | 2 pcs | 4.0 mm | 3 pins | BLL-3PINS-HNL | |
| Backlight Driver : | No | |||||
CMO G121X1-L02 Packing Details
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 15 pcs / box | 461×362×314 mm | 11.15 Kgs |
