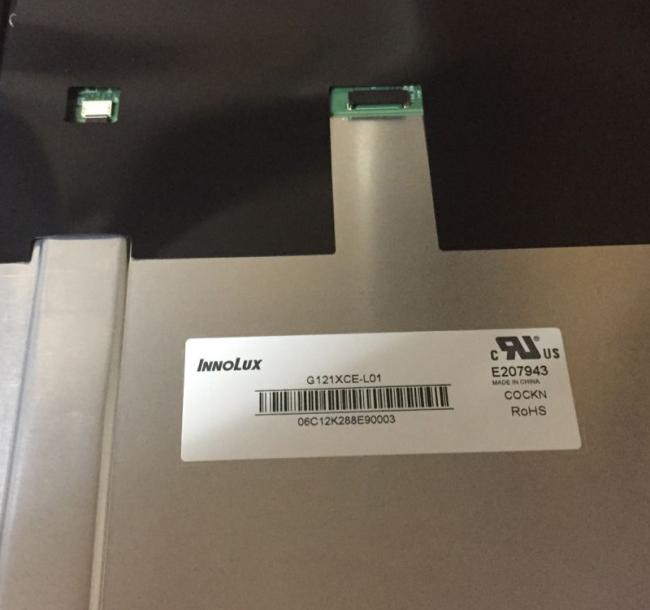

G121XCE-L01 INNOLUX 12.1" 1024(RGB)×768 600 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
INNOLUX
Product Description
Innolux G121XCE-L01 Application Details
| Basic Info : | |
|---|---|
| Reliability : |
Innolux G121XCE-L01 Mechanical Details
| Pixel Features : | Resolution | 1024(RGB)×768, XGA | Dot Pitch(mm) | 0.080×0.240 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.240×0.240 (H×V) [105PPI] | |
| Mechanical Size : | Active Area(mm) | 245.76(H) × 184.32(V) | Bezel Area(mm) | 249.0(H) × 187.5(V) |
| Outline Dim.(mm) | 260.5(H) × 204(V) | Depth(mm) | 8.4/8.9 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (4-M2) on left, right bezel | |||
| Other Spec : | Weight | 490/510g (Typ./Max.) | Treatment | Antiglare, Hard coating (3H) |
Innolux G121XCE-L01 Optical Details
| Basic Information : | Luminance(cd/m²) | 600 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | AAS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 13/12 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.40 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 73% | sRGB | 93% coverage |
| Adobe RGB | 72% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Innolux G121XCE-L01 Interface Details
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 370/450mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 1.22/1.49W (Typ./Max.) | |||||
| Signal Type : | LVDS (1 ch, 6/8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| STARCONN | 076B20-0048RA-G4 | 1 pcs | 20 pins | 1.25 mm | LVDS-20P1C8B-160A | |
Innolux G121XCE-L01 Backlight Details
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 50K(Min.) (Hours) | |
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| ACES | 91208-01001 | 1 pcs | 10 pins | 1.0 mm | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 12.0±1.2V | Current Supply | 0.9/1.07A (Typ./Max.) | ||
| Consumption | 10.8/12.8W (Typ./Max.) | |||||
Innolux G121XCE-L01 Packing Details
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 18 pcs / box | 10.9 Kgs (Typ.) | 465×362×314 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
