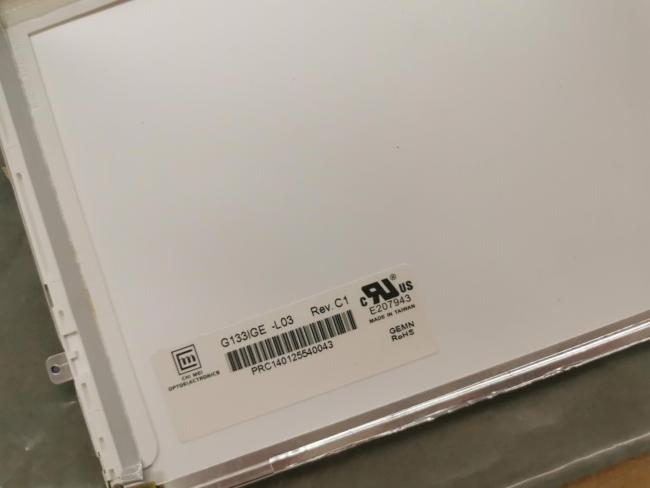

G133IGE-L03 Chimei Innolux 13.3" 1280(RGB)×800 500 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
INNOLUX
Product Description
Chimei Innolux G133IGE-L03 Application Details
| Basic Detail : | Manufacturer | Model Name | G133IGE-L03 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 13.3 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -30 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| Vibration Level | 1.5G (14.7 m/s²) | RoHS |
Chimei Innolux G133IGE-L03 Optical Details
| Basic Information : | Luminance | 500 cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 6/10 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.40 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 43% | sRGB | 60% coverage |
| Adobe RGB | 45% coverage | DCI-P3 | 45% coverage | |
| Rec.2020 | 32% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Chimei Innolux G133IGE-L03 Mechanical Details
| Pixel Features : | Number of Pixel | 1280(RGB)×800 [WXGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0745×0.2235 mm | Pixel Pitch(W×H) | 0.2235×0.2235 mm [113PPI] | |
| Physical Size : | Active Viewing | 286.08(W)×178.8(H) mm | Overall Dim. | 308.7(W)×195(H) mm |
| Bezel Opening | 289.1(W)×181.8(H) mm | Overall Depth | 6.6/8.2 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:10 | Shape Style | Wedge (PCBA Bent, T≥5.2mm) | |
| Fixation : | Face mounting holes (3-M2); Side mounting holes (6-M2) | |||
| Other Detail : | Mass | 382/397g (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
Chimei Innolux G133IGE-L03 Interface Details
| Signal Electrical : | Input Current | 0.35/0.45/0.55A (Min./Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 5.4W (Typ.) | Signal Interface | LVDS (1 ch, 6/8-bit) | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | DF19KR-20P-1H | 1 pcs | 1.0 mm | 20 pins | LVDS-20P1C8B-220A | |
Chimei Innolux G133IGE-L03 Lightting Details
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 30K(Min.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| E&T | 3808K-F05N-03L | 1 pcs | 1.25 mm | 5 pins | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 430mA (Typ.) | Input Voltage | 12.0±1.2V | ||
| Consumption | 5.16W (Typ.) | |||||
Chimei Innolux G133IGE-L03 Packing Details
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 20 pcs / box | 520×310×415 mm | 13 Kgs |
