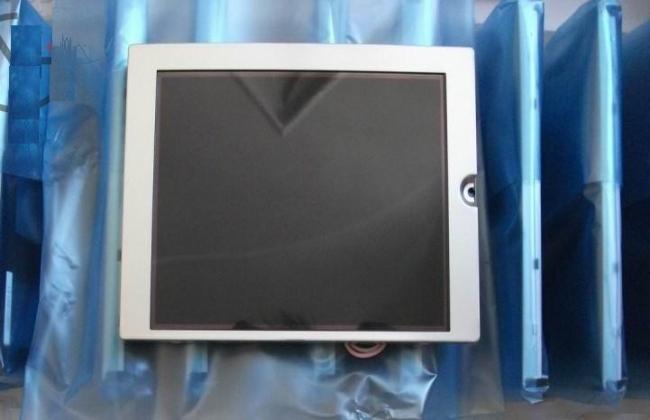

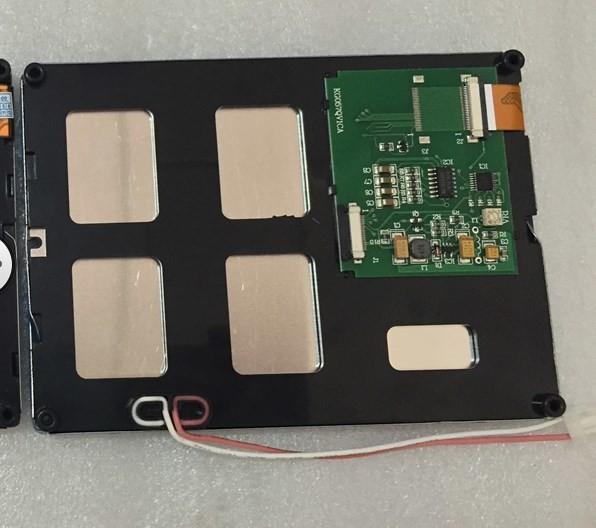

KG057QV1CA-G000 Kyocera 5.7INCH LCM 320×240RGB 220NITS CCFL INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2day
Brand:
Kyocera
Product Description
Kyocera KG057QV1CA-G000 Application Features
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| KG057QV1CA-G000 | FSTN-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| - | - |
Kyocera KG057QV1CA-G000 Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 220 (Typ.) | 45/45/20/40 (Min.)(CR≥2) | 500 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| - | STN, Black/White (Negative), Transmissive | 10 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| - | Monochrome | - |
Kyocera KG057QV1CA-G000 Mechanical Features
| Panel Size : | 5.7" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 320×240 [QVGA] | Rectangle | 0.360×0.360 [70PPI] | 0.360×0.360 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 115.18(H) × 86.38(V) | 119.4(H) × 90.6(V) | 144(H) × 104.8(V) | 9.0/13.2 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||
| Mounting : | Rear mounting poles (4-Φ2.6) | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 175g | - | Glare (Haze 0%) | ||
Kyocera KG057QV1CA-G000 Electronics Features
| Reverse Scan : | No |
|---|---|
| Driving Method : | Duty: 1/240 |
Kyocera KG057QV1CA-G000 Backlight Features
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| CCFL | Edge light type | 1 pcs | - | 58K(Typ.) | - | |
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 2 pins | 1 pcs | BLL-2PINS-HL | ||||
Kyocera KG057QV1CA-G000 Interface Features
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3/5.0V (Typ.)(VDD) | - | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | Parallel Data | Connector | ||||
