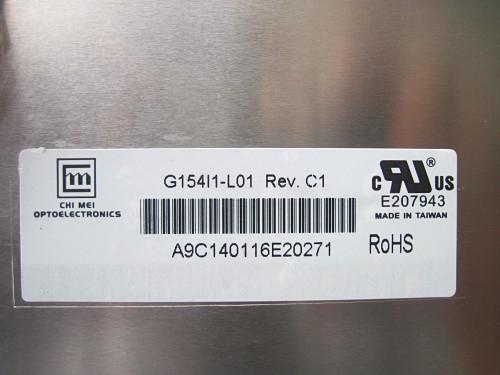

G154I1-L01 CMO 15.4" 1280(RGB)×768 700 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
CMO
Product Description
CMO G154I1-L01 Application Details
| Basic Detail : | Manufacturer | Model Name | G154I1-L01 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 15.4 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | -30 ~ 80 °C | ST Temperature | -40 ~ 85 °C |
| Vibration Level | 1.5G (14.7 m/s²) | RoHS |
CMO G154I1-L01 Optical Details
| Basic Information : | Luminance | 700 cd/m² (Typ.) | Contrast Ratio | 700 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | - | Response Speed | 5/11 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.40 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 61% | sRGB | 84% coverage |
| Adobe RGB | 64% coverage | DCI-P3 | 63% coverage | |
| Rec.2020 | 46% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity |
CMO G154I1-L01 Mechanical Details
| Pixel Features : | Number of Pixel | 1280(RGB)×800 [WXGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.08625×0.25875 mm | Pixel Pitch(W×H) | 0.25875×0.25875 mm [98PPI] | |
| Physical Size : | Active Viewing | 331.2(W)×207(H) mm | Overall Dim. | 352(W)×230(H) mm |
| Bezel Opening | 334.5(W)×210.3(H) mm | Overall Depth | 15.8±0.5 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:10 | Shape Style | ||
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail : | Mass | 1.29/1.35Kgs (Typ./Max.) | Surface | Glare (Haze 0%), Hard coating (3H), Antireflection |
CMO G154I1-L01 Electronics Details
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (180°) |
CMO G154I1-L01 Interface Details
| Signal Electrical : | Input Current | 410mA (Typ.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | LVDS (1 ch, 6-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JAE | FI-SE20P-HFE | 1 pcs | 1.25 mm | 20 pins | LVDS-20P1C6B-010C | |
CMO G154I1-L01 Lightting Details
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Edge light type (Top and Bottom) |
|---|---|---|---|---|---|---|
| Exchange | Replaceable | Amount | 4 pcs | Life | 50K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 3.0/7.0/8.0mA (Min./Typ./Max.) | Input Voltage | 600±60V | ||
| Frequency | 40/55/80KHz (Min./Typ./Max.) | Turn-on Voltage | - | |||
| Consumption | 16.8W (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| YEONHO | 35001HS-02L | 4 pcs | 3.5 mm | 2 pins | BLL-2PINS-HL | |
| Backlight Driver : | No | |||||

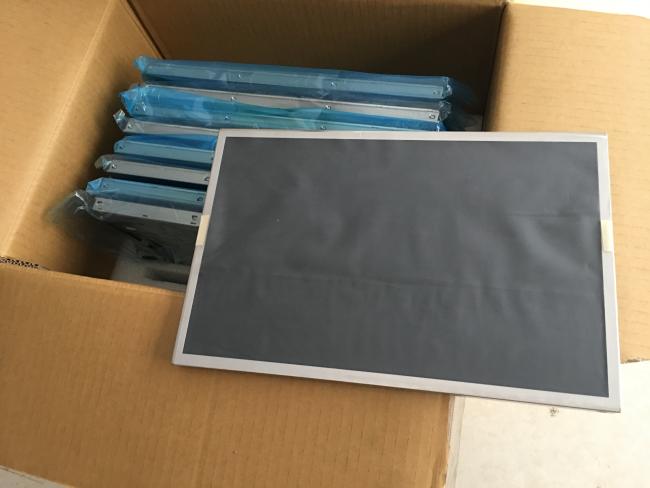

CMO G154I1-L01 Packing Details
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 10 pcs / box | 465×362×314 mm | 14.7 Kgs |
