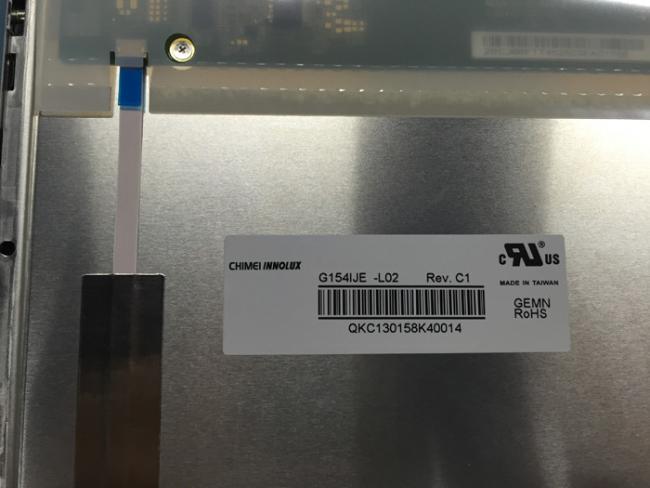

G154IJE-L02 Innolux 15.4" 1280(RGB)×800 400 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
INNOLUX
Product Description
Innolux G154IJE-L02 Application Details
| Basic Information : | Brand | Model | G154IJE-L02 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 15.4" | Alias | - | |
| Environment : | Storage Temp. | -20 ~~ 80 °C | Operating Temp. | -10 ~~ 70 °C |
| RoHS | Vibration | 1.5G (14.7 m/s²) |
Innolux G154IJE-L02 Mechanical Details
| Pixel Features : | Resolution | 1280(RGB)×800, WXGA | Dot Pitch(mm) | 0.08625×0.25875 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.25875×0.25875 (H×V) [98PPI] | |
| Mechanical Size : | Active Area(mm) | 331.2(H) × 207(V) | Bezel Area(mm) | 334.5(H) × 210.3(V) |
| Outline Dim.(mm) | 352(H) × 230(V) | Depth(mm) | 8.7±0.5 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:10 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Spec : | Weight | 920g (Typ.) | Treatment | Antiglare, Hard coating (3H) |
Innolux G154IJE-L02 Optical Details
| Basic Information : | Luminance(cd/m²) | 400 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Display Mode | MVA, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 15/10 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.40 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 45% | sRGB | 62% coverage |
| Adobe RGB | 47% coverage | DCI-P3 | 47% coverage | |
| Rec.2020 | 34% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Innolux G154IJE-L02 Electronics Details
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Power Consumption : | 19.0W (Max.) |
Innolux G154IJE-L02 Interface Details
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 750/900mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 4.0W (Max.) | |||||
| Signal Type : | LVDS (1 ch, 6/8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| STARCONN | 093G30-B1001A-G4 | 1 pcs | 30 pins | 1.0 mm | LVDS-30P1C8B-105A | |
Innolux G154IJE-L02 Backlight Details
| Backlight Features: | Shape | 5 strings | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | Replaceable | Quantity | 9S5P | Life Time | 50K(Min.) (Hours) | |
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 12.0±1.2V | Current Supply | 1.2±0.1A | ||
| Consumption | 14.4/15.0W (Typ./Max.) | |||||
Innolux G154IJE-L02 Packing Details
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 13 pcs / box | 11.0 Kgs | 456×362×314 mm (L×W×H) |
