G154JCE-L01 Innolux 15.4" 1290(RGB)×1200 800 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
INNOLUX
Product Description
Innolux G154JCE-L01 Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 800 (Typ.) | 88/88/88/88 (Typ.)(CR≥10) | 13/12 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | AAS, Normally Black, Transmissive | 1400 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 71% | 100% | 74% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 74% | 53% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.25 (Max.)(5 points) | ||
| Performance : | 3D Tech | Sunlight Visibility | Reflectance |
| - | Sunlight Readable | ||
Innolux G154JCE-L01 Application Features
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| G154JCE-L01 | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -40 ~ 85 °C | -40 ~ 95 °C |
Innolux G154JCE-L01 Mechanical Features
| Panel Size : | 15.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1920(RGB)×1200 [WUXGA] | RGB Vertical Stripe | 0.1722×0.1722 [147PPI] | 0.0574×0.1722 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 330.624(H) × 206.64(V) | - | 341.12(H) × 219.14(V) | 6.95±0.3 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:10 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
Innolux G154JCE-L01 Electronics Features
| Reverse Scan : | No |
|---|---|
| Vertical Frequency : | 60Hz |
| Power Consumption : | 21.6/24.0W (Typ./Max.) |
Innolux G154JCE-L01 Backlight Features
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 40K(Min.) | - | |
| Interface Features : | Position | Backlight Driver | Type | |||
| - | With LED Driver | Included in panel signal interface | ||||
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 12.0V (Typ.) | ||||||
Innolux G154JCE-L01 Interface Features
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 12.0V (Typ.) | 1.8/2.0A (Typ./Max.) | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | FPD-Link III | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 99S11D-40MA5-D | 6 pins | 1 pcs | ||||

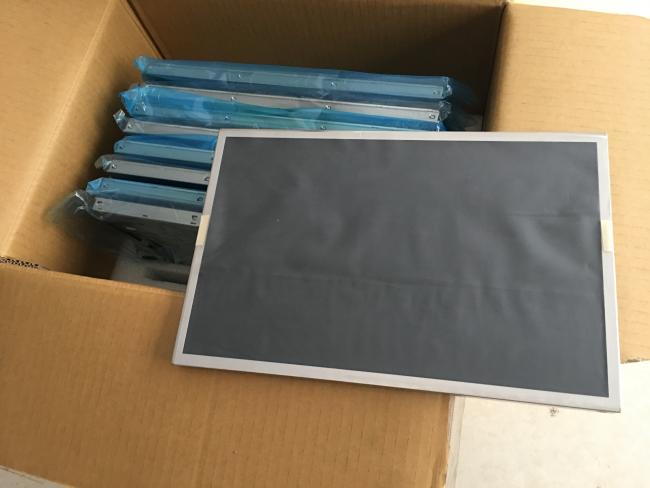

Innolux G154JCE-L01 Packing Features
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 7 pcs / box | 9.10 Kgs | 415×283×385 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
