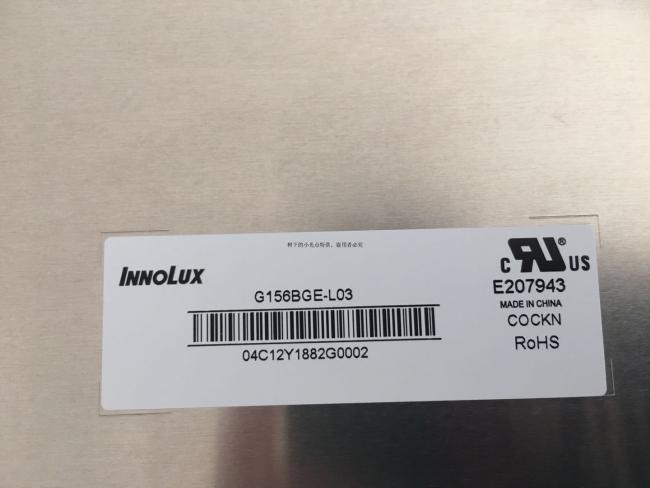

G156BGE-L03 Innolux 15.6" 1366(RGB)×768 500 cd/m² INDUSTRIAL LCD DISPLAY

Price Negotiable
Price: Negotiable
MOQ: 1PCS
Delivery Time: 1-2 DAYS
Brand: INNOLUX
Product Description

Innolux G156BGE-L03 Application Details

Basic Info :
Panel Brand

G156BGE-L03Panel Model
Diagonal Size
15.6"
Application

a-Si TFT-LCD , LCMPanel Type
Model Alias
-
Reliability :
Operating Temp.
-10 ~ 60 °C
Storage Temp.
-20 ~ 60 °C
RoHS State

1.5G (14.7 m/s²)Vibration Rating



Innolux G156BGE-L03 Mechanical Details

Pixel Features :
Pixel Format
1366(RGB)×768, WXGA
Dot Pitch
0.084×0.252 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.252×0.252 mm (H×V) [100PPI]
Mechanical Size :
Display Area
344.232×193.536 mm (H×V)
Bezel Area
347.53×196.84 mm (H×V)
Outline Dim.
363.8×215.98 mm (H×V)
Outline Depth
9.3±0.5 mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style

Holes & Brackets :
Side mounting holes, Rear mounting holes
Other Features :
Weight
720/755g (Typ./Max.)
Surface
Antiglare, Hard coating (3H)





Innolux G156BGE-L03 Optical Details

Basic Information :
Brightness
500 cd/m² (Typ.)
Contrast Ratio
600:1 (Typ.) (Transmissive)
Viewing Angle
80/80/80/80 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
-
Response Time
3/8 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
16.7M (8-bit)
Color Temperature
6485K
Uniformity
1.54 (Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
63%
sRGB
88% coverage
Adobe RGB
66% coverage
DCI-P3
66% coverage
Rec.2020
47% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Innolux G156BGE-L03 Electronics Details

Frame Frequency :
60Hz
Reverse Scan :
No
Power Consumption :
12.1W (Typ.)



Innolux G156BGE-L03 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
-
Life Time
50K(Min.) (Hours)
Replacement
-
Lamp Shape
-
Position
Edge light type (Bottom side)
Interface Features :
Type
Connector
Position
-
Lamp Driver
With LED Driver
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
CviLux
CI4205M2HRP-NH
1.25 mm
5 pins
1 pcs

Driver Electrical :
Voltage Input
12.0±1.2V
Current Input
1.0±0.2A
Consumption
10.5 (Max.)



Innolux G156BGE-L03 Interface Detail

Signal Systerm :
LVDS (1 ch, 8-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
5.0V (Typ.)
Current Input
0.24/0.29A (Typ./Max.)
Consumption
1.35/1.6W (Typ./Max.)
Interface Features :
Type
Connector
Position
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
STM
MSCK2407P30
1.0 mm
30 pins
1 pcs
LVDS-30P1C8B-180A



Innolux G156BGE-L03 Carton Details

Package Carton : Amount Net Weight Carton Size (L×W×H)
13 pcs / box 12.0 Kgs 465×362×314 mm



 FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
