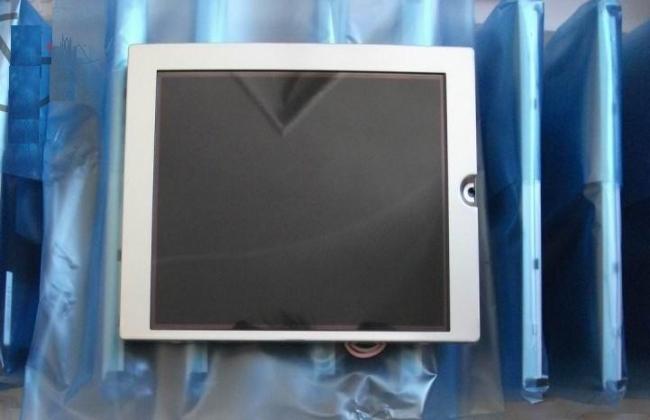

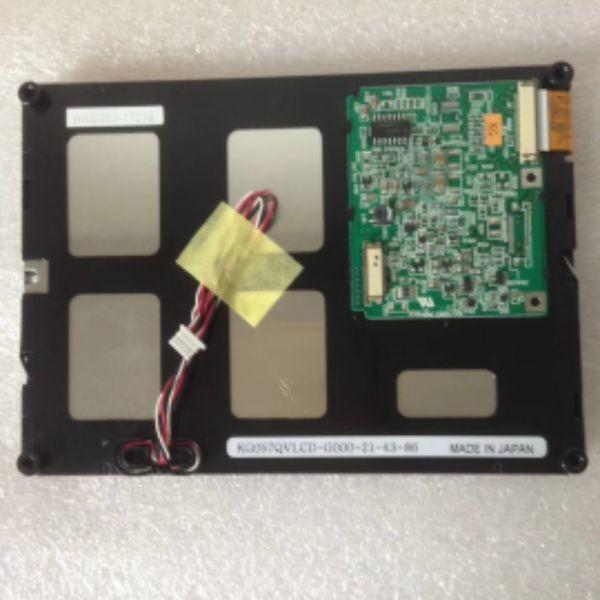

KG057QVLCD-G000 Kyocera 5.7INCH LCM 320×240RGB 300NITS WLED INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2day
Brand:
Kyocera
Product Description
Kyocera KG057QVLCD-G000 Application Details
| Basic Detail : | Manufacturer | Model Name | KG057QVLCD-G000 | |
|---|---|---|---|---|
| Panel Type | FSTN-LCD , LCM | Another Name | - | |
| Panel Size | 5.7 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 60 °C | ST Temperature | -20 ~ 60 °C |
| Vibration Level | - | RoHS |
Kyocera KG057QVLCD-G000 Optical Details
| Basic Information : | Luminance | 300 cd/m² (Typ.) | Contrast Ratio | 10 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | - | Response Speed | 380/120 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 45/45/20/40 (Typ.)(CR≥2) | Operating Mode | STN, Black/White (Negative), Transmissive | |
| Color Performance : | Chromaticity | - | Support Color | Monochrome |
Kyocera KG057QVLCD-G000 Mechanical Details
| Pixel Features : | Number of Pixel | 320×240 [QVGA] | Arrangement | Rectangle |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.360×0.360 mm | Pixel Pitch(W×H) | 0.360×0.360 mm [70PPI] | |
| Physical Size : | Active Viewing | 115.18(W)×86.38(H) mm | Overall Dim. | 144(W)×104.8(H) mm |
| Bezel Opening | 119.4(W)×90.6(H) mm | Overall Depth | 9.0/13.2 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Rear mounting poles (4-Φ2.6) | |||
| Other Detail : | Mass | 175g (Typ.) | Surface | Glare (Haze 0%) |
Kyocera KG057QVLCD-G000 Electronics Details
| Refresh Rate : | 75Hz |
|---|---|
| Reverse Scan : | No |
| Driving Method : | Duty: 1/240 |
Kyocera KG057QVLCD-G000 Interface Details
| Signal Electrical : | Input Current | 25/17mA (Typ.)(3.3V/5.0V)(IDD) | Input Voltage | 3.3/5.0V (Typ.)(VDD) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | Parallel Data (4-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| Kyocera Elco | 08-6210-020-340-800+ | 1 pcs | 0.5 mm | 20 pins | PD-20P1C4B-010A | |
Kyocera KG057QVLCD-G000 Lightting Details
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 50K(Typ.) (Hours) | |
| Lamp Electrical : | Input Current | 25mA (Typ.) | Input Voltage | 23.1/25.9V (Typ./Max.) | ||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | SHLP-06V-S-B | 1 pcs | 1.0 mm | 6 pins | BLE-6PINS-AAACCC | |
| Backlight Driver : | No | |||||
