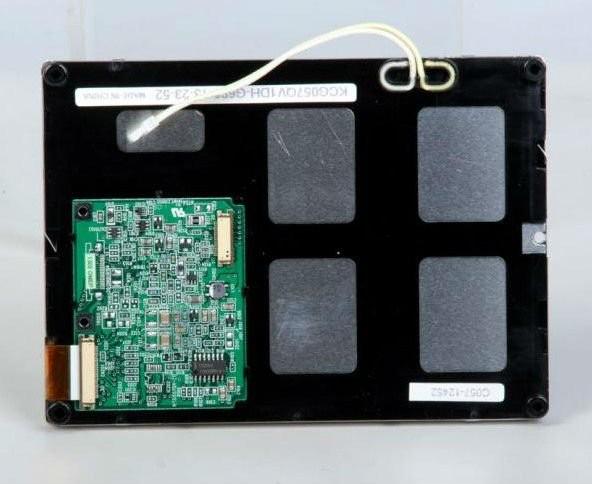

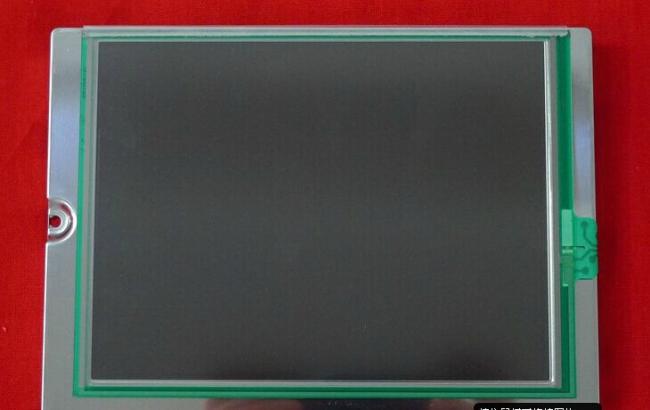

KG057QVLCE-G000 Kyocera 5.7INCH LCM 320×240RGB 240NITS WLED INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2day
Brand:
Kyocera
Product Description
Kyocera KG057QVLCE-G000 Application Details
| Basic Info : | Panel Brand | Panel Model | KG057QVLCE-G000 | |
|---|---|---|---|---|
| Diagonal Size | 5.7" | Application | ||
| Panel Type | FSTN-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | 0 ~ 60 °C | Storage Temp. | -20 ~ 60 °C |
| RoHS State | Vibration Rating | - | ||
| Specific Features : |
|
|||
| Remarks : | Touch panel: Analog type, Non-Glare treatment | |||
Kyocera KG057QVLCE-G000 Mechanical Details
| Pixel Features : | Pixel Format | 320×240 [QVGA] | Dot Pitch | 0.360×0.360 mm (H×V) |
|---|---|---|---|---|
| Configuration | Rectangle | Pixel Pitch | 0.360×0.360 mm (H×V) [70PPI] | |
| Mechanical Size : | Display Area | 115.18×86.38 mm (H×V) | Bezel Area | 119.4×90.6 mm (H×V) |
| Outline Dim. | 144×104.8 mm (H×V) | Outline Depth | 10.8/15.3 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Touch Screen : | Touch Points | - | TP Signal | - |
| TP Controller | - | Touchscreen | 4-wire Resistive Touch | |
| Holes & Brackets : | Rear mounting poles (4-Φ2.6) | |||
| Other Features : | Weight | 220g (Typ.) | Surface | Glare (Haze 0%) |
Kyocera KG057QVLCE-G000 Optical Details
| Basic Information : | Brightness | 240 cd/m² (Typ.) | Contrast Ratio | 10:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 45/45/20/40 (Typ.)(CR≥2) | Optical Mode | STN, Black/White (Negative), Transmissive | |
| Viewing Direction | - | Response Time | 380/120 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | - | Color Numbers | Monochrome |
Kyocera KG057QVLCE-G000 Electronics Details
| Frame Frequency : | 75Hz |
|---|---|
| Reverse Scan : | No |
| Driving Method : | Duty: 1/240 |
Kyocera KG057QVLCE-G000 Backlight Details
| Back-light Features: | Lamp Shape | 3 strings | Lamp Type | WLED | Life Time | 50K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 3 strings | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 23.1/25.9V (Typ./Max.) | Current Input | 25mA (Typ.) | ||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | SHLP-06V-S-B | 1.0 mm | 6 pins | 1 pcs | BLE-6PINS-AAACCC | |
Kyocera KG057QVLCE-G000 Interface Details
| Signal Systerm : | Parallel Data (4-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3/5.0V (Typ.)(VDD) | Current Input | 25/17mA (Typ.)(3.3V/5.0V)(IDD) | ||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| Kyocera Elco | 08-6210-020-340-800+ | 0.5 mm | 20 pins | 1 pcs | PD-20P1C4B-010A | |
