G170EGE-L50 Innolux 17.0" 1280(RGB)×1024 400 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
INNOLUX
Product Description
Innolux G170EGE-L50 Application Details
| Basic Information : | Brand | Model | G170EGE-L50 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 17.0" | Alias | - | |
| Environment : | Storage Temp. | -40 ~~ 85 °C | Operating Temp. | -30 ~~ 80 °C |
| RoHS | Vibration | 1.5G (14.7 m/s²) |
Innolux G170EGE-L50 Mechanical Details
| Pixel Features : | Resolution | 1280(RGB)×1024, SXGA | Dot Pitch(mm) | 0.088×0.264 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.264×0.264 (H×V) [96PPI] | |
| Mechanical Size : | Active Area(mm) | 337.92(H) × 270.336(V) | Bezel Area(mm) | 341.9(H) × 274.4(V) |
| Outline Dim.(mm) | 358.5(H) × 296.5(V) | Depth(mm) | 10.5/11 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 5:4 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Spec : | Weight | 1.26/1.40/1.47Kgs (Min./Typ./Max.) | Treatment | Antiglare (Haze 25%), Hard coating (3H) |
Innolux G170EGE-L50 Optical Details
| Basic Information : | Luminance(cd/m²) | 400 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | - | Response(ms) | 1/4 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 95% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Innolux G170EGE-L50 Electronics Details
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Power Consumption : | TBD |
Innolux G170EGE-L50 Interface Details
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 490/580mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 2.45/2.9W (Typ./Max.) | |||||
| Signal Type : | LVDS (2 ch, 8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| FOXCONN | GS23301-0321R-7H | 1 pcs | 30 pins | 1.0 mm | LVDS-30P2C8B-160A | |
Innolux G170EGE-L50 Backlight Details
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 40K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 34.2/36/37.8V (Min./Typ./Max.) | Current Supply | 40±2.4mA | ||
| Consumption | 5.76/6.05W (Typ./Max.) | |||||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | SM10B-SHLS-TF | 1 pcs | 10 pins | 1.0 mm | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 12.0V (Typ.) | Current Supply | - | ||

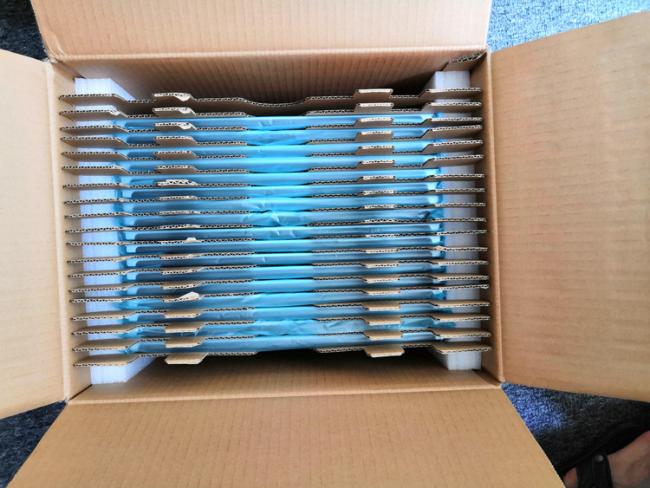

Innolux G170EGE-L50 Packing Details
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 11 pcs / box | 17.45 Kgs | 440×280×375 mm (L×W×H) |
