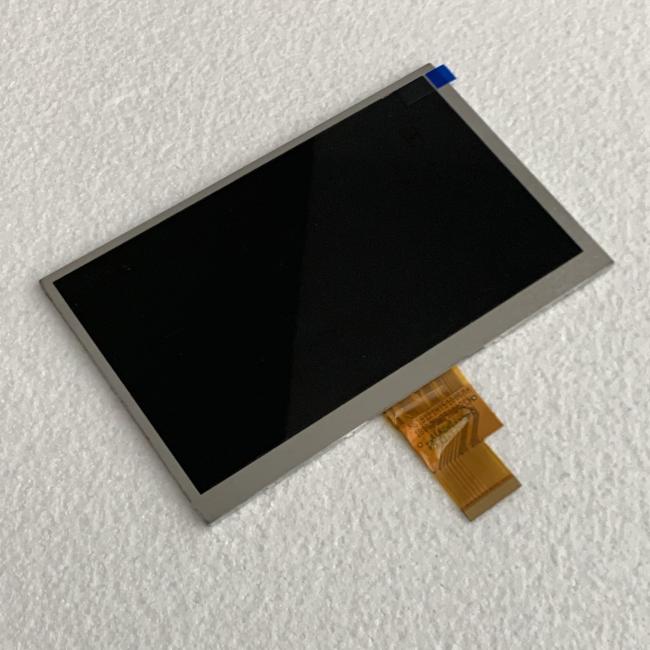

HJ070NA-13A Innolux 7.0" 1024(RGB)×600 250 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
INNOLUX
Product Description
Innolux HJ070NA-13A Application Features
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| HJ070NA-13A | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -10 ~ 50 °C | -20 ~ 60 °C |
Innolux HJ070NA-13A Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 250 (Typ.) | 70/75/75/75 (Typ.)(CR≥10) | 10/15 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 6 o'clock | TN, Normally White, Transmissive | 700 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6638K | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | X:0.310; Y:0.330 | |
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points) | ||
Innolux HJ070NA-13A Mechanical Features
| Panel Size : | 7.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1024(RGB)×600 [WSVGA] | RGB Vertical Stripe | 0.150×0.150 [169PPI] | 0.050×0.150 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 153.6(H) × 90(V) | 156.4(H) × 92.8(V) | 165.75(H) × 105.39(V) | 2.45±0.2 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 17:10 (H:V) | ||
| Mounting : | Without | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 92.8g (Typ.) | ||||
Innolux HJ070NA-13A Electronics Features
| Reverse Scan : | Yes (U/D, L/R) |
|---|---|
| Vertical Frequency : | 60Hz |
| Power Consumption : | 1.834W (Typ.) |
Innolux HJ070NA-13A Backlight Features
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 15K(Min.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 9.3/10.2V (Typ./Max.) | 160/200mA (Typ./Max.) | 1.488W (Typ.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Included in panel signal interface | ||||
Innolux HJ070NA-13A Interface Features
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) | 38/20/0.25/0.25mA (Typ.)(IDVDD/IAVDD/IGH/IGL) | 346mW | ||||
| Interface Features : | Position | Signal | Type | |||
| - | LVDS (1 ch, 6/8-bit) | FPC | ||||

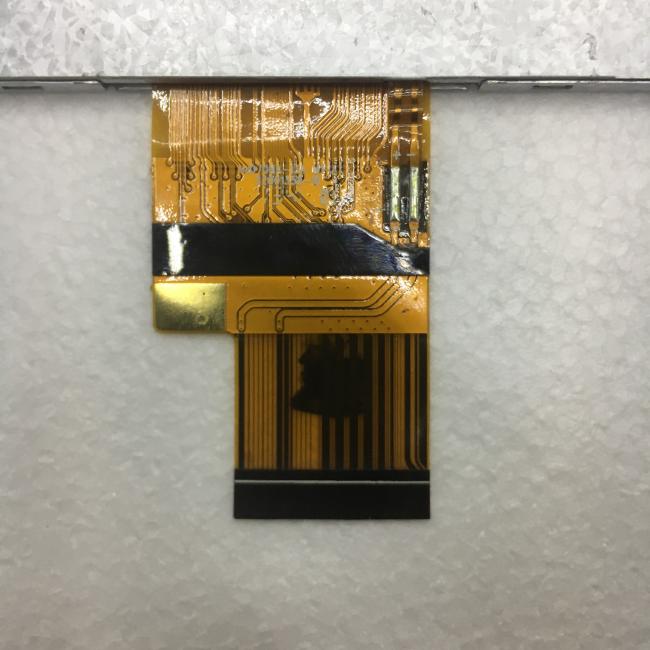

| FPC Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 0.5 mm | 40 pins | 1 pcs | LVDS-40P1C8B-050A | |||
Innolux HJ070NA-13A Packing Features
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 50 pcs / box | 7.21 Kgs (Typ.) | 530×355×255 mm (L×W×H) |
