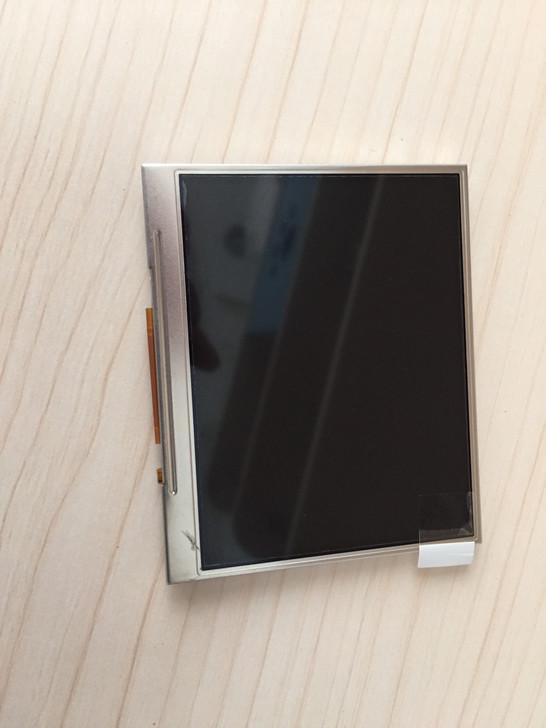

LQ035NC111 INNOLUX 3.5" 320(RGB)×240 300 cd/m² INDUSTRIAL LCD DISPLAY

Price Negotiable
Price: Negotiable
MOQ: 1PCS
Delivery Time: 1-2 DAYS
Brand: INNOLUX
Product Description

Innolux LQ035NC111 Application Details

Basic Info :
Panel Brand

LQ035NC111 1 CompatiblePanel Model
Diagonal Size
3.5"
Application






  •
Panel Type
a-Si TFT-LCD , LCM
Model Alias
-
Reliability :
Operating Temp.
-20 ~ 70 °C
Storage Temp.
-30 ~ 80 °C
RoHS State
Vibration Ratin

g



nnolux LQ035NC111 Mechanical Details

Pixel Features :
Pixel Format
320(RGB)×240, QVGA
Dot Pitch
0.073×0.219 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.219×0.219 mm (H×V) [115PPI]
Mechanical Size :
Display Area
70.08×52.56 mm (H×V)
Bezel Area
73.03×55.50 mm (H×V)
Outline Dim.
76.9×63.9 mm (H×V)
Outline Depth
3.26±0.2 mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style

Other Features :
Weight
30.0g (Typ.)
Surface
Antiglare (Haze 20%)



Innolux LQ035NC111 Optical Details

Basic Information :
Brightness
300 cd/m² (Typ.)
Contrast Ratio
400:1 (Typ.) (Transmissive)
Viewing Angle
60/60/50/55 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
6 o'clock
Response Time
10/15 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.310; Wy:0.330
Color Numbers
16.7M (8-bit)
Color Temperature
6638K
Uniformity
-



Innolux LQ035NC111 Electronics Details

Frame Frequency :
60Hz
Reverse Scan :
No
D-IC Detail :
Built-in HX8238-D



Innolux LQ035NC111 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
6S1P
Life Time
10K(Min.) (Hours)
Replacement
-
Lamp Shape
1 string
Position
Edge light type
Lamp Electrical :
Voltage Input
17.4/19.8/21V (Min./Typ./Max.)
Current Input
20mA (Typ.)
Consumption
400/420mW (Typ./Max.)
Interface Features :
Type
Included in panel signal interface
Position
-
Lamp Driver
No



Innolux LQ035NC111 Interface Detail

Signal Systerm :
Digital RGB (8/24-bit) + SPI, CCIR601/656
Logic Voltage
0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
8.6/15mA (Typ./Max.)
Interface Features :
Type
FPC
Position
-
FPC Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration


0.5 mm
54 pins
1 pcs



Innolux LQ035NC111 Carton Details

Package Carton : Amount Net Weight Carton Size (L×W×H)
114 pcs / box 6.37±0.32 Kgs 375×280×210 mm



  FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
