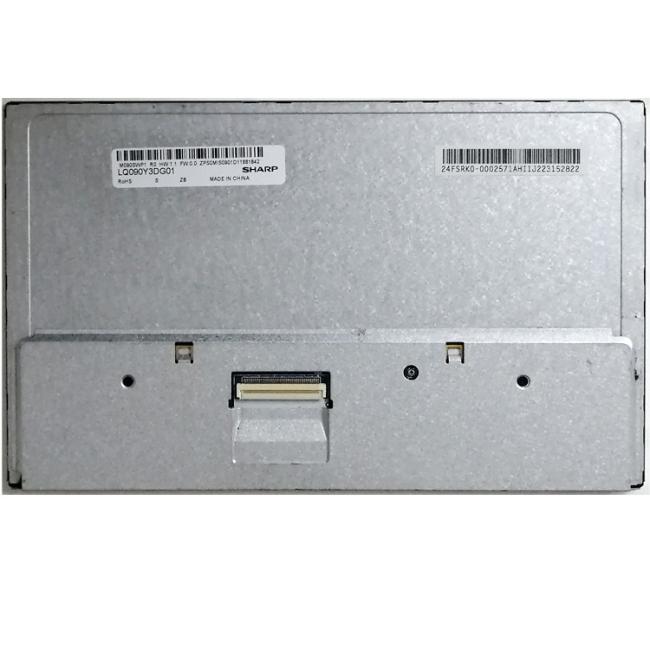

LQ090Y3DG01 Sharp 9" LCM 800×480RGB 300cd/m² INDUSTRIAL LCD DISPLAY
Sharp LQ090Y3DG01 Mechanical Features
| Screen Size : | 9.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 800(RGB)×480, WVGA | RGB Vertical Stripe | 0.0825×0.2327 mm | 0.2475×0.2327 mm [104PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 198×111.696 mm | - | 211.1×128.4 mm | 6.6 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 255g | - | Antiglare, Hard coating (3H) | ||
Sharp LQ090Y3DG01 Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 300 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 70/70/50/70 (Typ.)(CR≥10) | 25 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6638K | 16.7M (8-bit) | X:0.310; Y:0.330 | |
| White Uniformity : | 1.43 (Max.)(5 points) | ||
Sharp LQ090Y3DG01 Backlight Features
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 20K(Min.) | - | - | - | |
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| With LED Driver | - | |||||
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 4.5/12.0/21.0V (Min./Typ./Max.) | - | - | ||||
Sharp LQ090Y3DG01 Interface Features
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
|---|---|---|---|---|---|---|
| Parallel RGB (1 ch, 8-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| STARCONN | 089H50-000000-G2-R | 1 pcs | 50 pins | 0.5 mm | ||
LQ090Y3DG01 supports display 800(RGB)×480 (WVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 198(W)×111.696(H) mm, outline size of 211.1(W)×128.4(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 255g. As a TN, Normally White, Transmissive LCM product, LQ090Y3DG01 can provides 300 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, With LED Driver.
