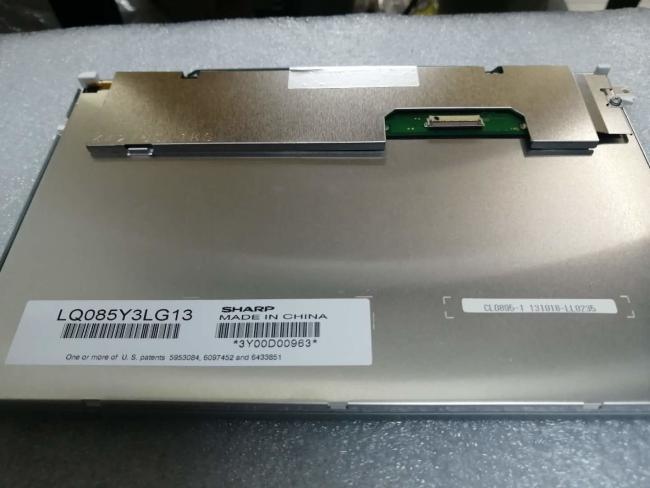

LQ085Y3LG13 Sharp 8.5" LCM 800×480RGB 450cd/m² INDUSTRIAL LCD DISPLAY
LQ085 Series LQ085Y3LG13 LQ085Y3DG12
Sharp LQ085Y3LG13 Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 450 (Typ.) | 80/80/80/80 (Typ.) | 8/21 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 3 o'clock | TN, Normally White, Transmissive | 500 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 7351K | 262K (6-bit) | X:0.300; Y:0.320 |
Sharp LQ085Y3LG13 Mechanical Features
| Panel Size : | 8.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 800×480(RGB) [WVGA] | RGB Horizontal Stripe | 0.231×0.231 [109PPI] | 0.231×0.077 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 184.8(H) × 110.88(V) | - | 227.4(H) × 134(V) | 13.5 (Typ.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 15:9 (H:V) | ||
| Mounting : | Face mounting holes on left and right brackts. | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| TBD | - | Antiglare | ||
Sharp LQ085Y3LG13 Backlight Features
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 50K(Typ.) | - | |
| Interface Features : | Position | Backlight Driver | Type | |||
| - | With LED Driver | Included in panel signal interface | ||||
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 12.0±0.6V | TBD | - | ||||
Sharp LQ085Y3LG13 Interface Features
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | TBD | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | LVDS (1 ch, 6-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| HRS | FH12-33S-0.5SH(55) | 0.5 mm | 33 pins | 1 pcs | ||
LQ085Y3LG13 supports display 800×480(RGB) (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Horizontal Stripe. As for mechanical detail, it features active area of 184.8(W)×110.88(H) mm, outline size of 227.4(W)×134(H) mm, with surface treament of Antiglare, net weight of TBD. As a TN, Normally White, Transmissive LCM product, LQ085Y3LG13 can provides 450 cd/m² display brightness 500:1 transimissive contrast ratio, 80/80/80/80 (Typ.) (L/R/U/D) viewing angle, best view direction on 3 o'clock , and response time of 8/21 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. LQ085Y3LG13 utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 33 pins Connector with power supply voltage of 3.3V (Typ.).
