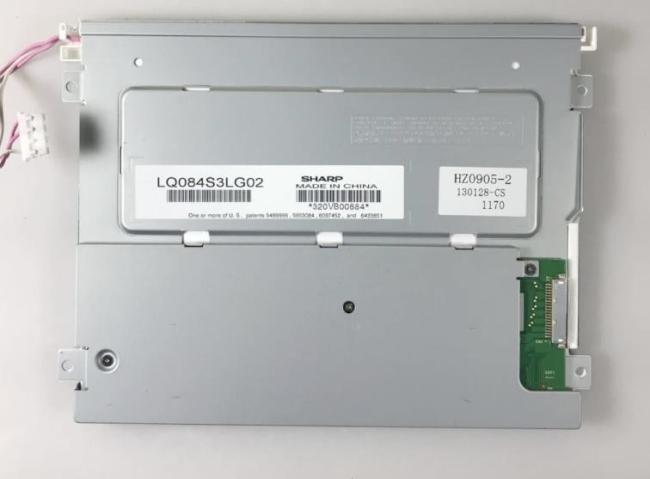

LQ084S3LG02 Sharp 8.4" LCM 800×600RGB 350cd/m² INDUSTRIAL LCD DISPLAY
Price:
178USD
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
SHARP
Product Description
LQ084 Series LQ084S3LG12 LQ084S3LG11 LQ084S3LG03 LQ084S3LG02 LQ084S3LG01
Sharp LQ084S3LG02 Mechanical Features
| Screen Size : | 8.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 800(RGB)×600, SVGA | RGB Vertical Stripe | 0.071×0.213 mm | 0.213×0.213 mm [119PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 170.4×127.8 mm | 173.4×130.8 mm | 199.5×149.5 mm | 12.0 (Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 450g (Max.) | - | Antiglare, Hard coating (2H) | ||
Sharp LQ084S3LG02 Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 350 cd/m² (Typ.) | TN, Normally White, Transmissive | 450:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 12 o'clock | 65/65/60/55 (Typ.)(CR≥10) | 35 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 262K/16.2M (6-bit / 6-bit + FRC) | X:0.313; Y:0.329 | |
| White Uniformity : | 1.33 (Max.)(9 points) | ||
Sharp LQ084S3LG02 Backlight Features
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top side) | - | 2 pcs | Straight | - | |
| CCFL Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 380V (Typ.) | 3.0/6.0/6.5mA (Min./Typ./Max.) | 4.6W (Typ.) | ||||
| Operating Frequency | Startup Voltage | |||||
| 45/100KHz (Min./Max.) | 890/1000V (Max.)(Ta=+25/-30℃) | |||||
| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| - | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | BHR-04VS-1 | 1 pcs | 4 pins | 4.0 mm | BLL-4PINS-HHNL | |
Sharp LQ084S3LG02 Interface Features
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 300/380mA (Typ./Max.) | - | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (1 ch, 6/8-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| HRS | DF19G-20P-1H | 1 pcs | 20 pins | 1.0 mm | LVDS-20P1C8B-010F | |
