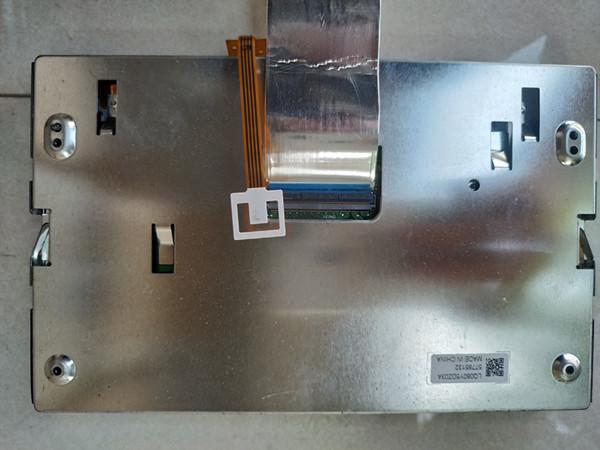

LQ080Y5DZ03A Sharp 8" LCM 800×480RGB 645cd/m² INDUSTRIAL LCD DISPLAY
LQ080 Series LQ080Y5DZ05 LQ080Y5DZ03A LQ080Y5DZ03
Sharp LQ080Y5DZ03A Optical Details
| Basic Information : | Luminance | 645 cd/m² (Typ.) | Contrast Ratio | 2000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 15/5 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | ASV, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.290; Wy:0.320 | Support Color | 262K (6-bit) |
| Color Temperature | 8022K | White Uniformity | 1.18 (Typ.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 65% | sRGB | 85% coverage |
| Adobe RGB | 67% coverage | DCI-P3 | 67% coverage | |
| Rec.2020 | 48% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Sharp LQ080Y5DZ03A Mechanical Details
| Pixel Features : | Number of Pixel | 800(RGB)×480 [WVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0725×0.2175 mm | Pixel Pitch(W×H) | 0.2175×0.2175 mm [116PPI] | |
| Physical Size : | Active Viewing | 174(W)×104.4(H) mm | Overall Dim. | 191.8(W)×120(H) mm |
| Bezel Opening | 176.4(W)×106.55(H) mm | Overall Depth | 15.5/16.8 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 15:9 | Shape Style | ||
| Fixation : | Side mounting holes (4-M2.5) on left, right bezel, Rear mounting holes | |||
| Other Detail : | Mass | 400g (Typ.) | Surface | Antiglare, Reflection 1.5% (Typ.) |
Sharp LQ080Y5DZ03A Electronics Details
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
Sharp LQ080Y5DZ03A Interface Details
| Signal Electrical : | Input Current | 260/350mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | Parallel RGB (1 ch, 6-bit) | |||
| Logic Voltage for Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | FH41-68S-0.5SH(05) | 1 pcs | 0.5 mm | 68 pins | ||
Sharp LQ080Y5DZ03A Lightting Details
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 10K(Min.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 450/1000mA (Typ./Max.) | Input Voltage | 7.0/13.5/18.0V (Min./Typ./Max.) | ||
LQ080Y5DZ03A supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 174(W)×104.4(H) mm, outline size of 191.8(W)×120(H)×16.8(D) mm, viewing area size of 176.4(W)×106.55(H) mm, with surface treament of Antiglare, Reflection 1.5% (Typ.), net weight of 400g (Typ.). As a ASV, Normally Black, Transmissive LCM product, LQ080Y5DZ03A can provides 645 cd/m² display brightness 2000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 15/5 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 64% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, With LED Driver.
