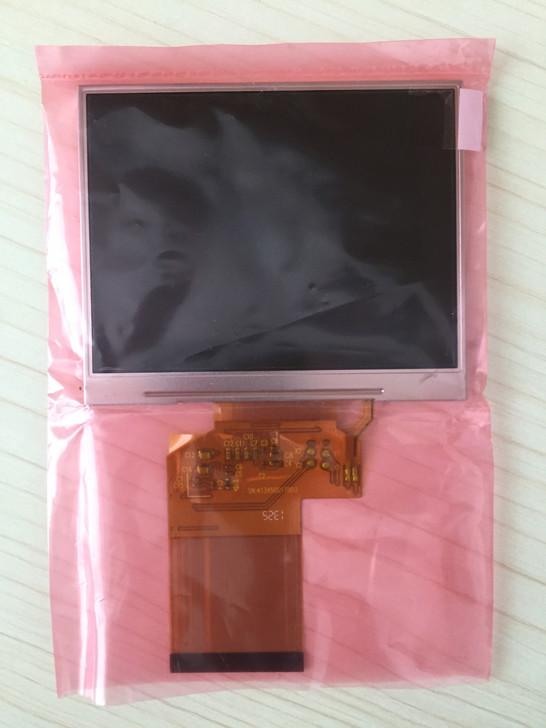

LQ035NC211 INNOLUX 3.5" 320(RGB)×240 200 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
INNOLUX
Product Description
Innolux LQ035NC211 Application Details
| Basic Detail : | |
|---|---|
| Maximum Ratings : |
Innolux LQ035NC211 Mechanical Details
| Pixel Features : | Pixel Format | 320(RGB)×240 [QVGA] | Dot Pitch | 0.073×0.219 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.219×0.219 mm (H×V) [115PPI] | |
| Mechanical Size : | Display Area | 70.08×52.56 mm (H×V) | Bezel Area | 72.00×54.56 mm (H×V) |
| Outline Dim. | 76.9×63.9 mm (H×V) | Outline Depth | 4.36±0.2 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Touch Screen : | Touch Points | - | TP Signal | - |
| TP Controller | - | Touchscreen | 4-wire Resistive Touch | |
| Other Features : | Weight | 40.0g (Typ.) | Surface | Antiglare (Haze 20%) |
Innolux LQ035NC211 Optical Details
| Basic Information : | Brightness | 200 cd/m² (Typ.) | Contrast Ratio | 400:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 60/60/50/55 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 10/15 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Color Numbers | 16.7M |
| Color Temperature | 6638K | White Uniformity | - |
Innolux LQ035NC211 Electronics Details
| Reverse Scan : | No |
|---|
Innolux LQ035NC211 Backlight Details
| Back-light Features: | Lamp Shape | 1 string | Lamp Type | WLED | Life Time | 50K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 6S1P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 18.6/19.8/21V (Min./Typ./Max.) | Current Input | 20mA (Typ.) | ||
| Consumption | 400/420mW (Typ./Max.) | |||||
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | No |
Innolux LQ035NC211 Interface Details
| Signal Systerm : | Digital RGB (8/24-bit) + SPI, CCIR601/656 | Logic Voltage | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.)(VCC) | Current Input | 8.6mA (Typ.)(ICC) | ||
| Interface Features : | Type | FPC | Position | - | ||
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 0.5 mm | 54 pins | 1 pcs | ||||
