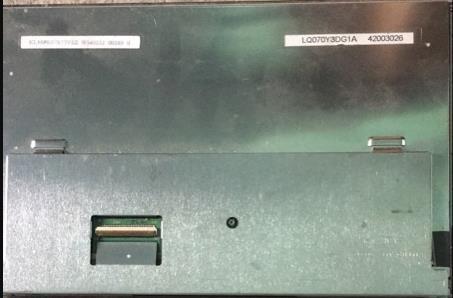

LQ070Y3DG1A Sharp 7" LCM 800×480RGB 300cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
SHARP
Product Description
LQ070 Series LQ070Y3DG3B LQ070Y3DG3A LQ070Y3DG1A
Sharp LQ070Y3DG1A Application Features
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| SHARP | LQ070Y3DG1A | a-Si TFT-LCD , LCM | - | |
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -10 ~ 70 °C | -30 ~ 80 °C | - |
Sharp LQ070Y3DG1A Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 300 (Typ.) | 65/65/50/60 (Typ.)(CR≥10) | - | |
| Best View on | Display Mode | Contrast Ratio | |
| - | TN, Normally White, Transmissive | - | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| - | 262K (6-bit) | - |
Sharp LQ070Y3DG1A Mechanical Features
| Panel Size : | 7.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 800(RGB)×480 [WVGA] | RGB Vertical Stripe | 0.1905×0.1905 [133PPI] | 0.0635×0.1905 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 152.4(H) × 91.44(V) | - | 163.2(H) × 104(V) | 6.2 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 15:9 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
| TBD | - | Antiglare, Hard coating (2H) | ||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
