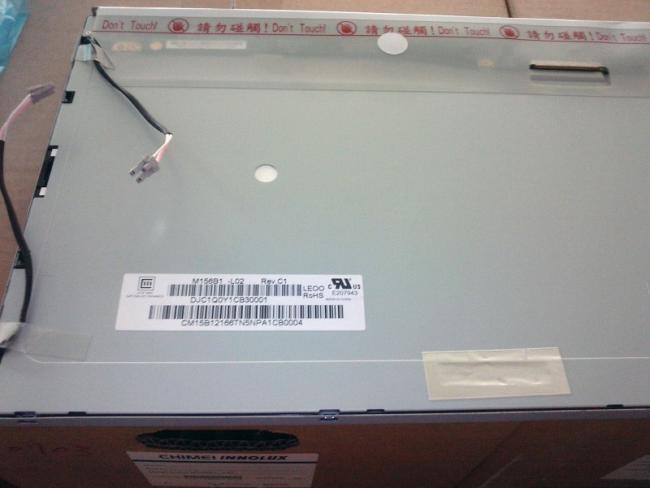

M156B1-L02 CMO 15.6" 1366(RGB)×768 250 cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
CMO
Product Description
CMO M156B1-L02 Application Features
| Basic Information : | Brand Name | Model Name 4 Compatible | Type | Model Alias |
|---|---|---|---|---|
| M156B1-L02 | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
CMO M156B1-L02 Mechanical Features
| Screen Size : | 15.6" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1366(RGB)×768, WXGA | RGB Vertical Stripe | 0.084×0.252 mm | 0.252×0.252 mm [100PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 344.232×193.536 mm | 347.5×196.8 mm | 363.8×215.9 mm | 14.3±0.5 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | Normal bezel | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 1.30Kgs (Max.) | - | Antiglare (Haze 25%), Hard coating (3H) | ||
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
CMO M156B1-L02 Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 250 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| - | 85/85/80/80 (Typ.)(CR≥10) | 2/6 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 68% | 92% | 71% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 71% | 51% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.40/1.50 (Typ./Max.)(13 points) | ||
CMO M156B1-L02 Electronics Features
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
CMO M156B1-L02 Backlight Features
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top and Bottom) | 50K(Typ.) | 2 pcs | Straight | - | |
| CCFL Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 650±65V | 3.0/7.0/8.0mA (Min./Typ./Max.) | 9.1W (Typ.) | ||||
| Operating Frequency | Startup Voltage | |||||
| 50/55/60KHz (Min./Typ./Max.) | 1100/1200V (Max.)(Ta=+25/0℃) | |||||
| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| No | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| YEONHO | 35001HS-02L | 2 pcs | 2 pins | 3.5 mm | BLL-2PINS-HL | |
CMO M156B1-L02 Interface Features
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 5.0V (Typ.) | 430/480mA (Typ.) | 2.15W (Typ.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (1 ch, 8-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| STM | MSAKT2407P30A | 1 pcs | 30 pins | 1.0 mm | LVDS-30P1C8B-170A | |
CMO M156B1-L02 Packing Features
| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 10 pcs / box | 15.7 Kgs | 489×382×330 mm (L×W×H) |
