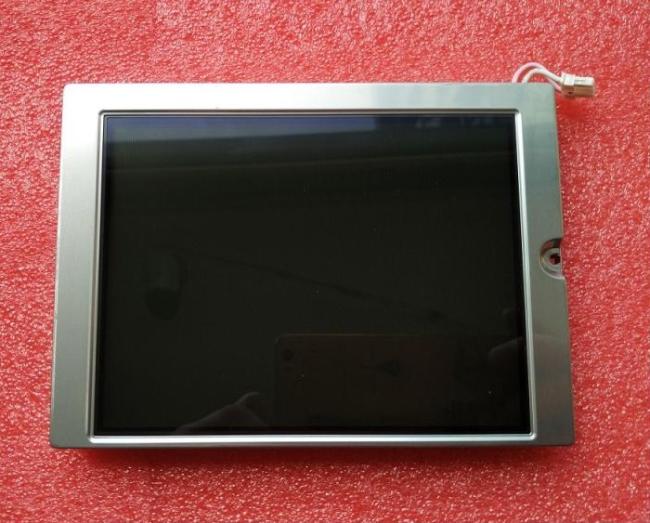

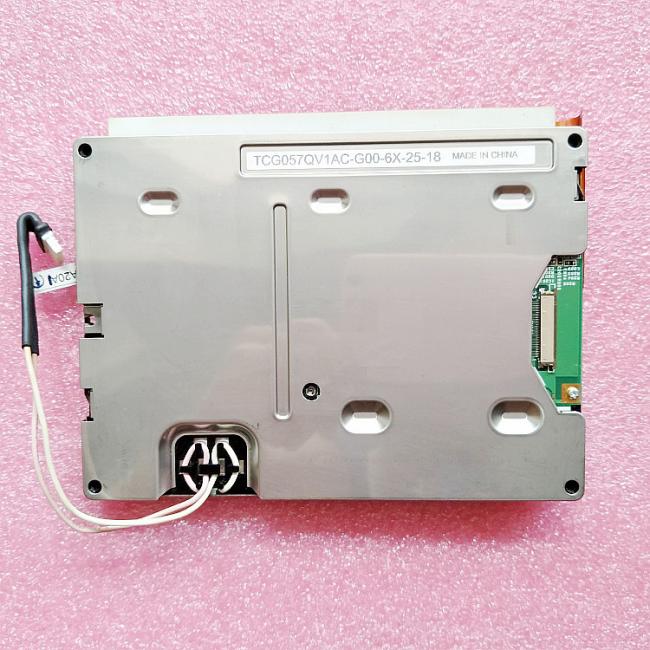

TCG057QV1AC-G10 Kyocera 5.7INCH LCM 320×240RGB 400NITS CCFL TTL INDUSTRIAL LCD DISPLAY

Price Negotiable
Price: Negotiable
MOQ: 1PCS
Delivery Time: 1-2day
Brand: Kyocera
Product Description

Kyocera TCG057QV1AC-G10 Application Details

Basic Detail :
Manufacturer

TCG057QV1AC-G10Model Name
Panel Type
a-Si TFT-LCD , LCM
Another Name
-
Panel Size
5.7 inch
Designed For
Maximum Ratings :
OP Temperature
-10 ~ 70 °C
ST Temperature
-30 ~ 80 °C
RoHS

-Vibration Level



Kyocera TCG057QV1AC-G10 Optical Details

Basic Detail :
Luminance
400 cd/m² (Typ.)
Contrast Ratio
450:1 (Typ.) (Transmissive)
Good View at
-
Response Speed
10/25 (Typ.)(Tr/Td) ms
Viewing Angle
70/70/70/50 (Typ.)(CR≥5)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
Wx:0.311; Wy:0.318
Support Color
262K (6-bit)
Color Temperature
6699K
White Variation
-
1931 Color Gamlt :
NTSC Ratio
51%
sRGB
70% coverage
Adobe RGB
53% coverage
DCI-P3
53% coverage
Rec.2020
38% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Kyocera TCG057QV1AC-G10 Mechanical Details

Pixel Features :
Number of Pixel
320(RGB)×240, QVGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.120×0.360 mm
Pixel Pitch(W×H)
0.360×0.360 mm [70PPI]
Physical Size :
Active Viewing
115.2(W)×86.4(H) mm
Overall Dim.
144(W)×104.8(H) mm
Bezel Opening
119.8(W)×91.0(H) mm
Overall Depth
13.0±0.5 mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
4:3
Shape Style

Fixation :
Rear mounting holes (4-Φ2.6)
Other Detail :
Mass
220g (Max.)
Surface
Glare (Haze 0%)



Kyocera TCG057QV1AC-G10 Electronics Details

Refresh Rate :
60Hz
Reverse Scan :
Yes (U/D, L/R)



Kyocera TCG057QV1AC-G10 Interface Detail

Signal Electrical :
Input Current
130/160mA (Typ./Max.)
Input Voltage
3.3V (Typ.)
Consumption
-
Signal Interface
Parallel RGB (1 ch, 6-bit)
Logic Voltage :
0≤VIL≤0.3VDD; 0.7VDD≤VIH≤5.5V
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
Kyocera Elco
08-6210-033-340-800
0.5 mm
33 pins
1 pcs



Kyocera TCG057QV1AC-G10 Lightting Details

Lamp Features :
Lamp Type
CCFL
Amount
1 pcs
Position
Edge light type
Exchange
-
Lamp Shape
U shape
Lamp Life
75K(Typ.) (Hours)
Lamp Electrical :
Input Voltage
685V
Input Current
4.0±1mA
Frequency
30/100KHz (Min./Max.)
Turn-on Voltage
1035/1550V (Max.)(Ta=+25/0°)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
JST
BHR-03VS-1
4.0 mm
3 pins
1 pcs
BLL-3PINS-HNL
Backlight Driver :
No
