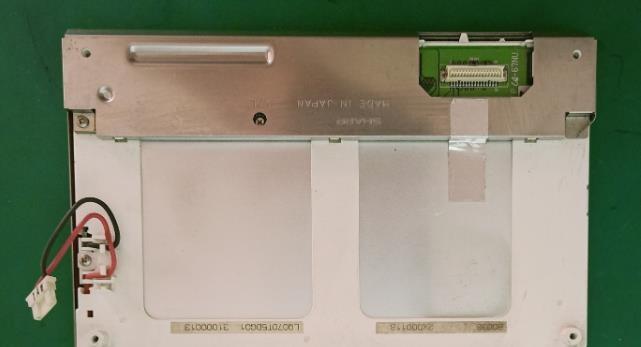

LQ070T5DG01 Sharp 7" LCM 854×480RGB 410cd/m² INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2 DAYS
Brand:
SHARP
Product Description
Sharp LQ070T5DG01 Mechanical Details
| Pixel Features : | Pixel Format | 854(RGB)×480 [FWVGA] | Dot Pitch | 0.0605×0.1815 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1815×0.1815 mm (H×V) [139PPI] | |
| Mechanical Size : | Display Area | 155×87.12 mm (H×V) | Bezel Area | 160.2×92.7 mm (H×V) |
| Outline Dim. | 176.9×109.3 mm (H×V) | Outline Depth | 14.9 (Typ.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | ||
| Holes & Brackets : | Rear mounting holes (4-Φ2.2) | |||
| Other Features : | Weight | 300±20g | Surface | Antiglare |
Sharp LQ070T5DG01 Optical Details
| Basic Information : | Brightness | 410 cd/m² (Typ.) | Contrast Ratio | 60:1 (Min.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 65/65/40/65 (Typ.)(CR≥5) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 30/50 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | - |
Sharp LQ070T5DG01 Backlight Details
| Back-light Features: | Lamp Shape | U shape | Lamp Type | CCFL | Life Time | 10K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 1 pcs | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 770/860/950V (Min./Typ./Max.) | Current Input | 3.0/6.5/7.0mA (Min./Typ./Max.) | ||
| Frequency | 5.6/6.7KHz (Typ./Max.) | Kick-off Voltage | 1900/1950V (Max.)(Ta=+25/-30℃) | |||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-02(8.0)VS-1N | 8.0 mm | 2 pins | 1 pcs | BLL-2PINS-HL | |
Sharp LQ070T5DG01 Interface Details
| Signal Systerm : | Parallel RGB (1 ch, 6-bit) | Logic Voltage | VIL≤0.3VCC; 0.7VCC≤VIH | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 5/10/-10V (Typ.)(VSH/VGH/VGL) | Current Input | 70/40/-30mA (Typ.)(ISH/SGH/IGL) | ||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| HRS | DF9MA-31P-1V | 1.0 mm | 31 pins | 1 pcs | DRGB-31P1C6B-090A | |
