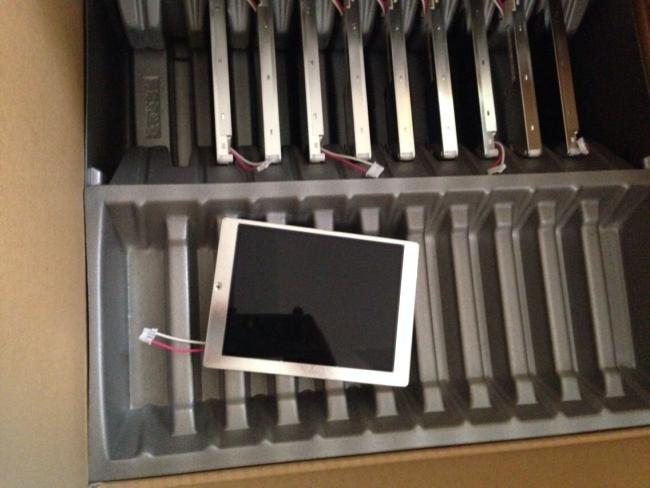

LQ070A3AG01 Sharp 7" LCM 320×234RGB 350cd/m² INDUSTRIAL LCD DISPLAY
Sharp LQ070A3AG01 Mechanical Details
| Pixel Features : | Pixel Format | 320(RGB)×234 | Dot Pitch | 0.150×0.450 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.450×0.450 mm (H×V) [56PPI] | |
| Mechanical Size : | Display Area | 144×105.3 mm (H×V) | Bezel Area | 149.0×110.3 mm (H×V) |
| Outline Dim. | 165.5×126.6 mm (H×V) | Outline Depth | 10.85/20.5 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Rear mounting holes | |||
| Other Features : | Weight | 425g (Max.) | Surface | - |
Sharp LQ070A3AG01 Optical Details
| Basic Information : | Brightness | 350 cd/m² (Typ.) | Contrast Ratio | 60:1 (Min.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 65/65/40/65 (Typ.)(CR≥5) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 10/25 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | Full color |
| Color Temperature | 6485K | White Uniformity | - |
Sharp LQ070A3AG01 Backlight Details
| Back-light Features: | Lamp Shape | U shape | Lamp Type | CCFL | Life Time | - |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 1 pcs | Position | Edge light type | |
| Interface Features : | Type | Position | - | Lamp Driver | With Inverter | |
| Driver Electrical : | Voltage Input | 12.0V (Typ.) | Current Input | 470/600mA (Typ./Max.) | ||
| Consumption | 5.64W (Typ.) | |||||
Sharp LQ070A3AG01 Interface Details
| Signal Systerm : | Analog RGB + Composite Video (NTSC/PAL) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 12.0V (Typ.) | Current Input | 90/130mA (Typ./Max.) | ||
| Consumption | 1.08W (Typ.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration  |
| 24 pins | 1 pcs | |||||
LQ070A3AG01 supports display 320(RGB)×234 with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 144(W)×105.3(H) mm, outline size of 165.5(W)×126.6(H)×20.5(D) mm, viewing area size of 149.0(W)×110.3(H) mm, net weight of 425g (Max.). As a TN, Normally White, Transmissive LCM product, LQ070A3AG01 can provides 350 cd/m² display brightness 60:1 transimissive contrast ratio, 65/65/40/65 (Typ.)(CR≥5) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/25 (Typ.)(Tr/Td) ms., thus presenting a palette of Full color colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type, With Inverter.
