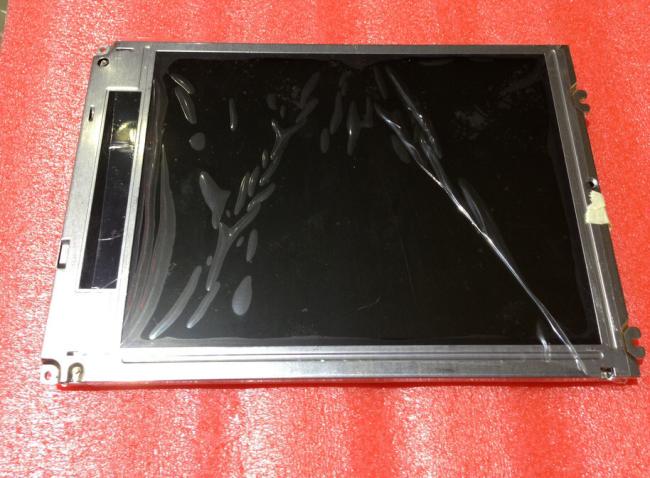

TCG057QVLCS-H50 Kyocera 5.7INCH LCM 320×240RGB 1000NITS WLED TTL INDUSTRIAL LCD DISPLAY
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
1-2day
Brand:
Kyocera
Product Description
Kyocera TCG057QVLCS-H50 Application Details
| Basic Info : | Panel Brand | Panel Model | TCG057QVLCS-H50 | |
|---|---|---|---|---|
| Diagonal Size | 5.7" | Application |
|
|
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -30 ~ 80 °C |
| RoHS State | Vibration Rating | - |
Kyocera TCG057QVLCS-H50 Mechanical Details
| Pixel Features : | Pixel Format | 320(RGB)×240 [QVGA] | Dot Pitch | 0.120×0.360 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.360×0.360 mm (H×V) [70PPI] | |
| Mechanical Size : | Display Area | 115.2×86.4 mm (H×V) | Bezel Area | 118.4×89.6 mm (H×V) |
| Outline Dim. | 144×104.8 mm (H×V) | Outline Depth | 13.0±0.5 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Rear mounting holes (4-Φ2.6) | |||
| Other Features : | Weight | 210g (Typ.) | Surface | Glare (Haze 0%), Antireflection |
Kyocera TCG057QVLCS-H50 Optical Details
| Basic Information : | Brightness | 1000 cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥5) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | - | Response Time | 10/25 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.320; Wy:0.340 | Color Numbers | 262K (6-bit) |
| Color Temperature | 6066K | White Uniformity | - | |
| 1931 Color Gamlt : | NTSC Ratio | 59% | sRGB | 77% coverage |
| Adobe RGB | 61% coverage | DCI-P3 | 61% coverage | |
| Rec.2020 | 44% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
Kyocera TCG057QVLCS-H50 Electronics Details
| Reverse Scan : | Yes (U/D, L/R) |
|---|
Kyocera TCG057QVLCS-H50 Backlight Details
| Back-light Features: | Lamp Shape | 2 strings | Lamp Type | WLED | Life Time | 50K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 2 strings | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 18.0/21.2V (Typ./Max.) | Current Input | 60mA (Typ.) | ||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | PHR-4 | 2.0 mm | 4 pins | 1 pcs | BLE-4PINS-AACC | |
Kyocera TCG057QVLCS-H50 Interface Details
| Signal Systerm : | Parallel RGB (1 ch, 6-bit) | Logic Voltage | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤5.5V | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 60/80mA (Typ./Max.) | ||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| IRISO | IMSA-9632S-33Z02-GF1 | 0.5 mm | 33 pins | 1 pcs | DRGB-33P1C6B-020A | |
