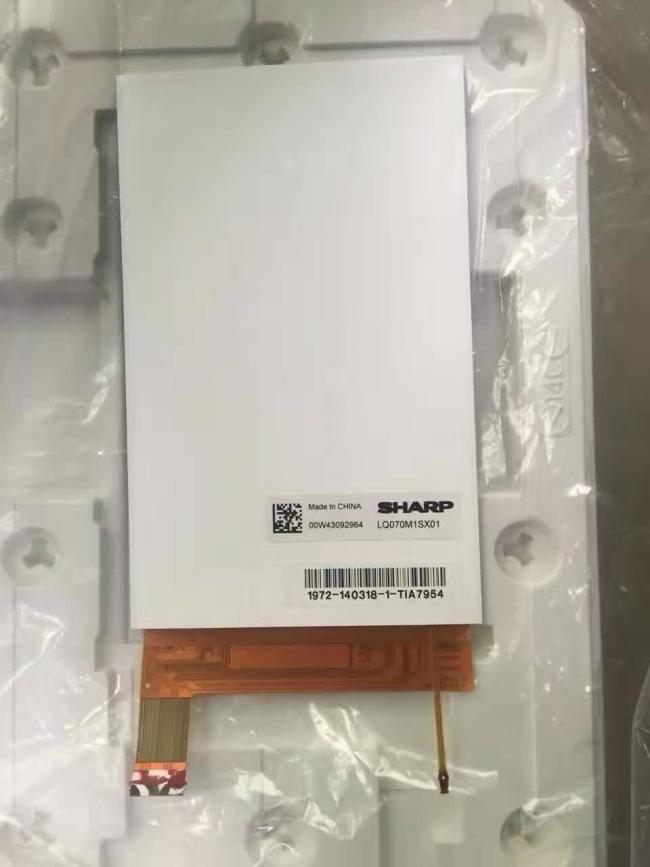

LQ070M1SX01 Sharp 7" LCM 1200×1920RGB 400cd/m² INDUSTRIAL LCD DISPLAY
Sharp LQ070M1SX01 Application Details
| Basic Information : | Brand | SHARP | Model | LQ070M1SX01 |
|---|---|---|---|---|
| Type | LCM Oxide TFT-LCD | Used For | ||
| Screen Size | 7.0" | Alias | - | |
| Environment : | Storage Temp. | -20 ~~ 70 °C | Operating Temp. | -10 ~~ 60 °C |
Sharp LQ070M1SX01 Mechanical Details
| Pixel Features : | Resolution | 1200(RGB)×1920, WUXGA | Dot Pitch(mm) | 0.02625×0.07875 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.07875×0.07875 (H×V) [322PPI] | |
| Mechanical Size : | Active Area(mm) | 94.5(H) × 151.2(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 99.7(H) × 159.85(V) | Depth(mm) | 1.73/2.23 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 10:16 (H:V) | Orientation | Portrait type | |
| Mounting : | Without | |||
| Other Spec : | Weight | 41.0g (Typ.) | Treatment | Clear, Hard coating |
- Sharp LQ070M1SX01 Optical Details
Sharp LQ070M1SX01 Electronics Details
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
Sharp LQ070M1SX01 Interface Details
| Signal Electrical : | Voltage Supply | 1.8/3.0/5.5/-5.5V (Typ.)(VDDIO/VDD/VSP/VSN) | Current Supply | - | ||
|---|---|---|---|---|---|---|
| Signal Type : | MIPI (2 data lanes) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 71 pins | 0.2 mm | ||||
Sharp LQ070M1SX01 Backlight Details
| Backlight Features: | Shape | 2 strings | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 9S2P | Life Time | - | |
| Lamp Electrical : | Voltage Supply | 26.1V (Typ.) | Current Supply | 13.6/14.3/15.0mA (Min./Typ./Max.) | ||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 4 pins | 0.5 mm | BLE-4PINS-AACC | |||
LQ070M1SX01 supports display 1200(RGB)×1920 (WUXGA) with aspect ratio of 10:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 322 PPI. As for mechanical detail, it features active area of 94.5(W)×151.2(H) mm, outline size of 99.7(W)×159.85(H)×2.23(D) mm, with surface treament of Clear, Hard coating, net weight of 41.0g (Typ.). As a ASV, Normally Black, Transmissive LCM product, LQ070M1SX01 can provides 400 cd/m² display brightness 2000:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 9/13 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 9S2P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed.
